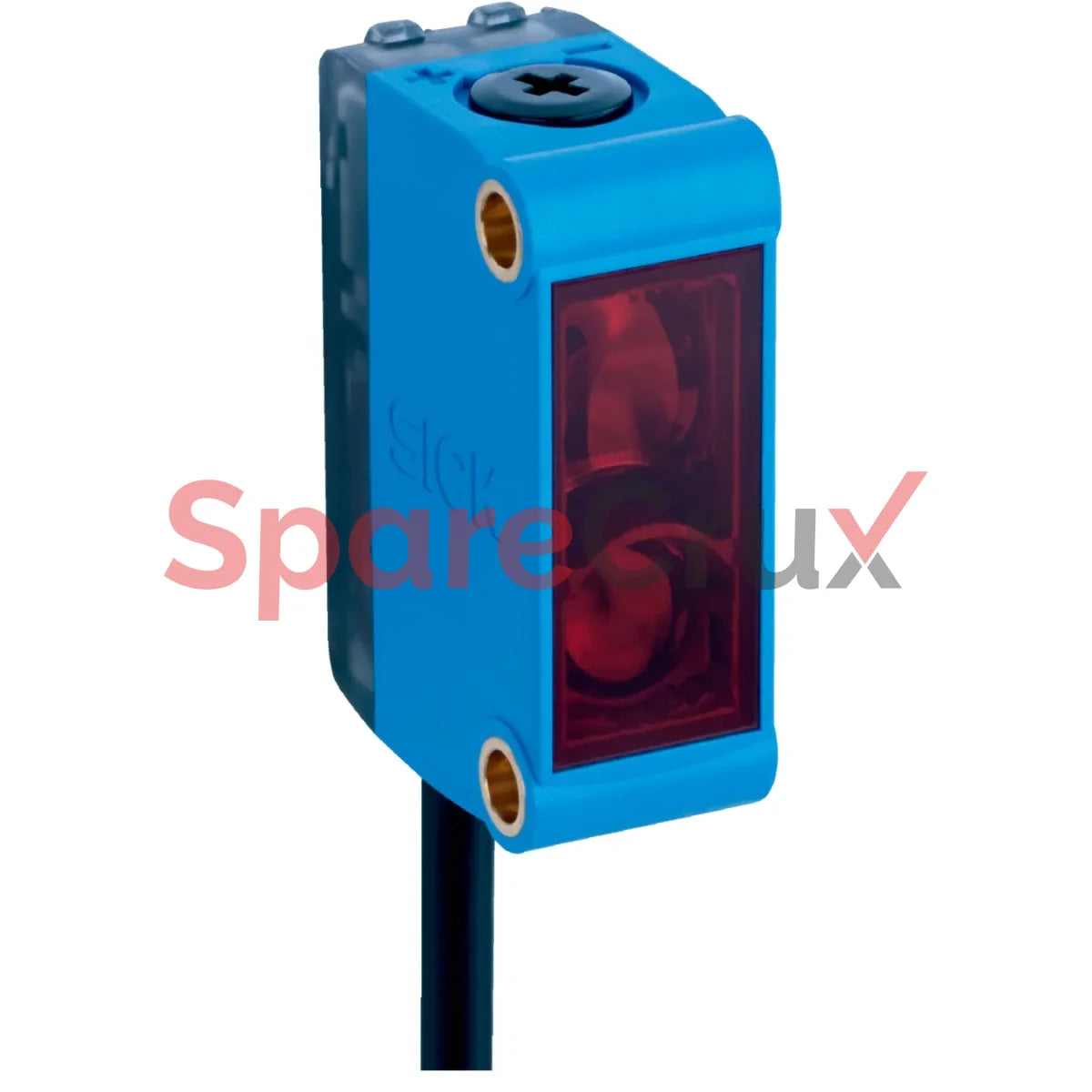

1051784 | SICK | GTE6-N1212

Name: 1051784 | SICK | GTE6-N1212
Brand: SICK SENSORS
Price: 3090.35 INR
Availability: InStock

₹ 3,646.61

₹ 3,090.35 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

GTE6-N1212 (1051784)

Original Equipment Manufacturer

SICK SENSORS

Description

Features

Functional Principle: Photoelectric proximity sensor, energetic
Sensing Range: Up to 250 mm (≤ 300 mm max.)
Light Source: PinPoint LED, visible red light (650 nm)
Light Spot Size: Ø 7 mm at 90 mm distance
Adjustment: Mechanical spindle, 5 turns
Switching Mode: Selectable via light/dark selector

Electrical Data

Supply Voltage (UB): 10 V DC to 30 V DC
Ripple: ±10%
Current Consumption: 30 mA (without load)
Protection Class: III
Output Type: NPN
Output Current (Imax): ≤100 mA
Response Time: <1.25 ms
Switching Frequency: 500 Hz
Circuit Protection:
- A: VS connections reverse-polarity protected
- B: Inputs and output reverse-polarity protected
- D: Outputs overcurrent and short-circuit protected

Mechanical Data

Housing: Rectangular, plastic (ABS/PC)
Dimensions (W x H x D): 12 mm x 31.5 mm x 21 mm
Connection: Cable, 3-wire, 2 m length (PVC)
Front Screen: Plastic (PMMA)
Weight: 60 g

Ambient Data

Enclosure Rating: IP67
Operating Temperature: –25 °C to +55 °C
Storage Temperature: –40 °C to +70 °C
