SPARECRUX is NOT an authorized distributor for SICK SENSORS

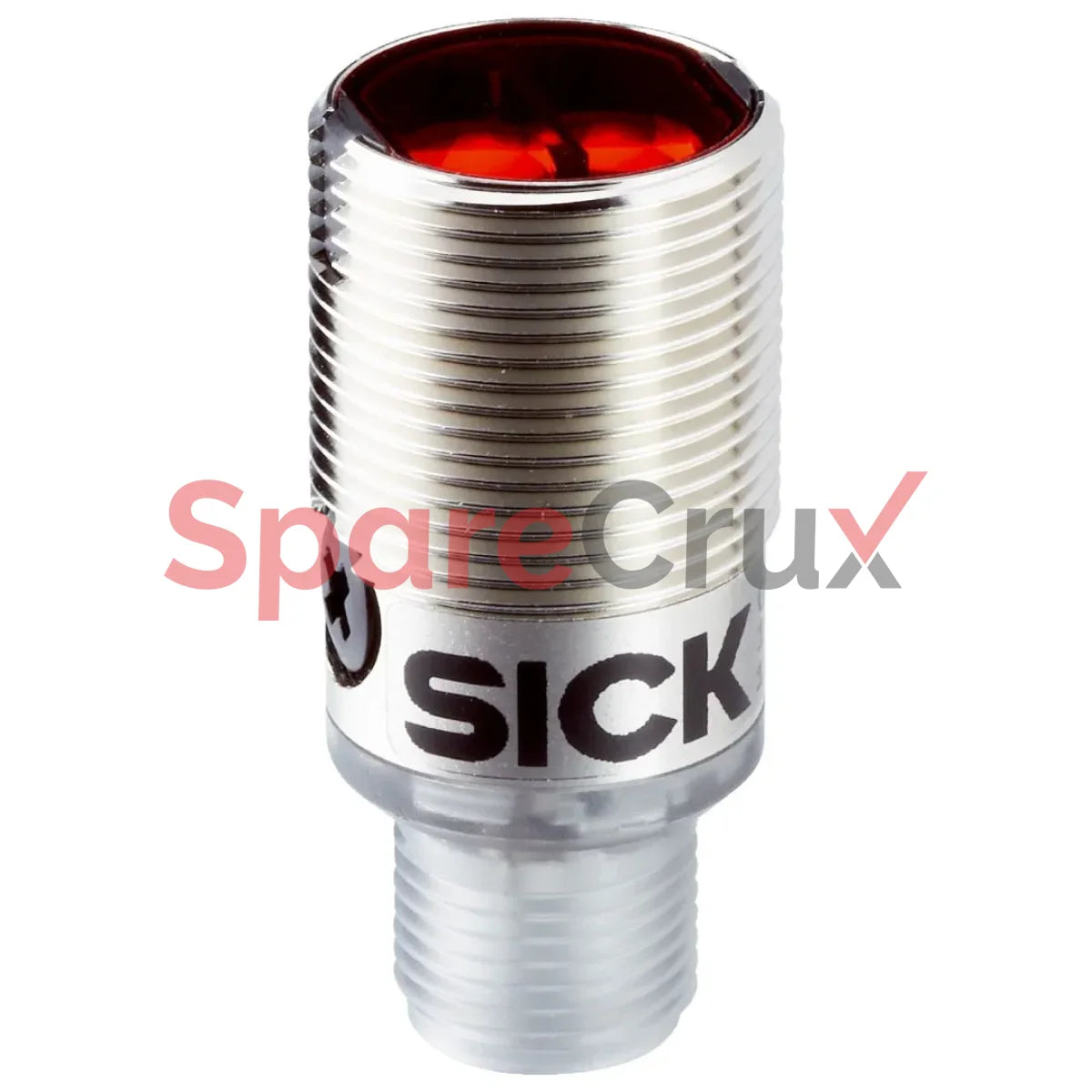

1069503 | SICK | GRTE18S-P1362

Name: 1069503 | SICK | GRTE18S-P1362
Brand: SICK SENSORS
Price: 2829.10 INR
Availability: InStock

₹ 3,338.34

₹ 2,829.10 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

GRTE18S-P1362 (1069503)

Original Equipment Manufacturer

SICK SENSORS

Description

Features

Sensor Principle: Photoelectric proximity sensor, energetic
Sensing Range: 3 mm to 800 mm
Light Source: LED, red light
Adjustment: Potentiometer, 270°
Switching Mode: Light/dark switching

Electrical Data

Supply Voltage (UB): 10 V DC to 30 V DC
Ripple: ±10%
Current Consumption: ≤ 20 mA (without load)
Protection Class: III
Output Type: PNP
Output Current (Imax): ≤ 100 mA
Response Time: < 1.5 ms
Switching Frequency: 333 Hz
Circuit Protection:
- A: VS connections reverse-polarity protected
- B: Inputs and output reverse-polarity protected
- D: Outputs overcurrent and short-circuit protected

Mechanical Data

Housing: Cylindrical, plastic (ABS)
Dimensions: M18 x 1 thread, length 45 mm
Connection: Cable, 2 m length (PVC)
Front Screen: Plastic (PMMA)
Weight: Approximately 50 g

Ambient Data

Enclosure Rating: IP67
Operating Temperature: –25 °C to +55 °C
Storage Temperature: –40 °C to +70 °C
