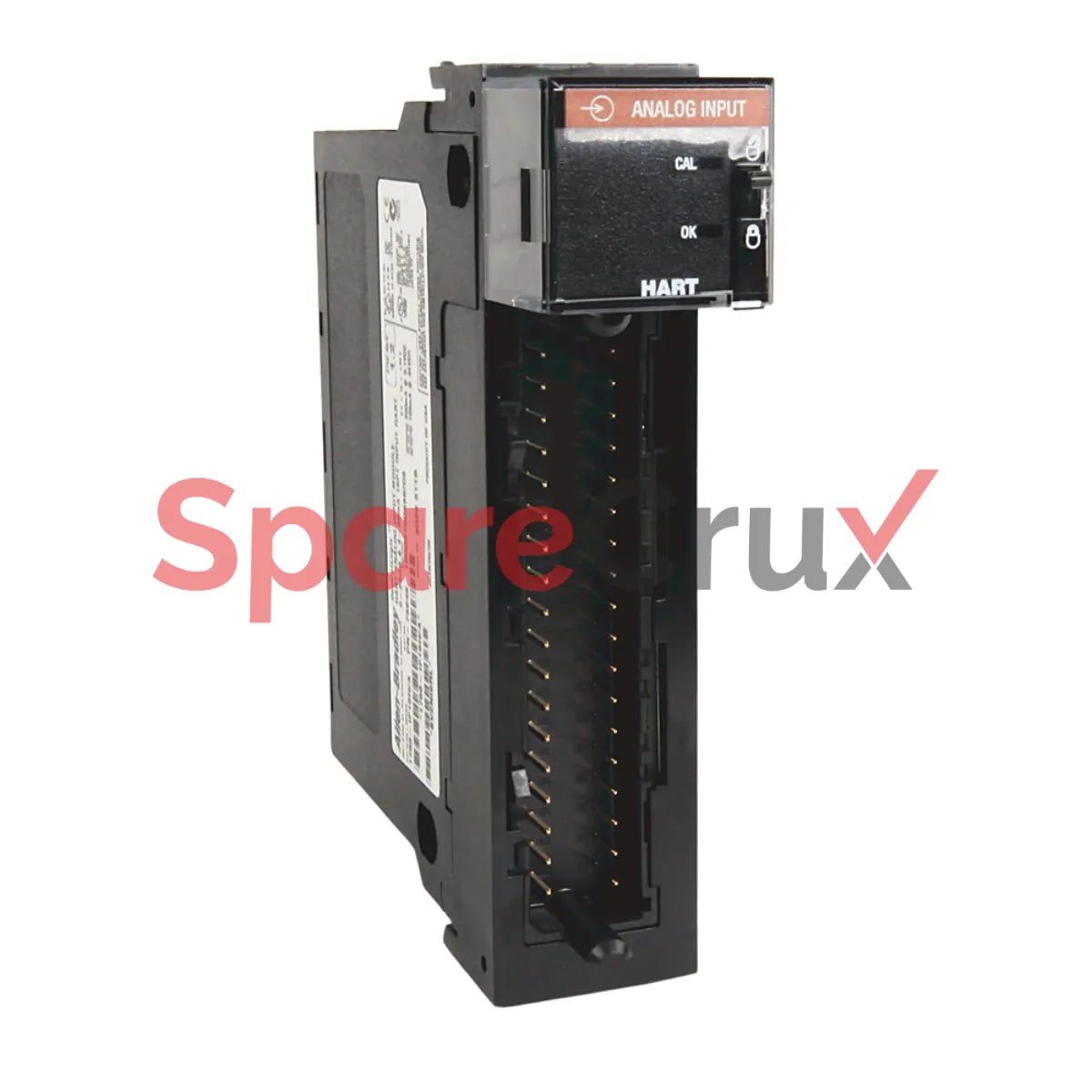

1756-IF16H | ALLEN BRADLEY | ControlLogix 16-Channel HART Analog Input Module
₹ 212,373.92
₹ 179,977.90 (Excl. Tax)
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
1756-IF16H
Original Equipment Manufacturer
ALLEN BRADLEY
Description
Description
| Specification | Details |
|---|---|
| Catalog Number | 1756-IF16H |
| Module Type | ControlLogix 16-Point Analog Input Module with HART Protocol |
| Number of Inputs | 16 differential |
| Input Signal Range | 0...20 mA, 4...20 mA |
| Resolution | 16...21 bits, depending on filter settings |
| Input Impedance | Current mode: 250 Ω |
| Conversion Rate | Analog: 18...488 ms (filter dependent); HART: typically 1 s per channel enabled |
| Accuracy | ±0.1% full scale at 25 °C (77 °F) |
| Backplane Current (5.1V) | 150 mA |
| Backplane Current (24V) | 2 mA |
| Power Dissipation | 2.5 W |
| Thermal Dissipation | 8.5 BTU/hr |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, c-UL-us, RCM |
