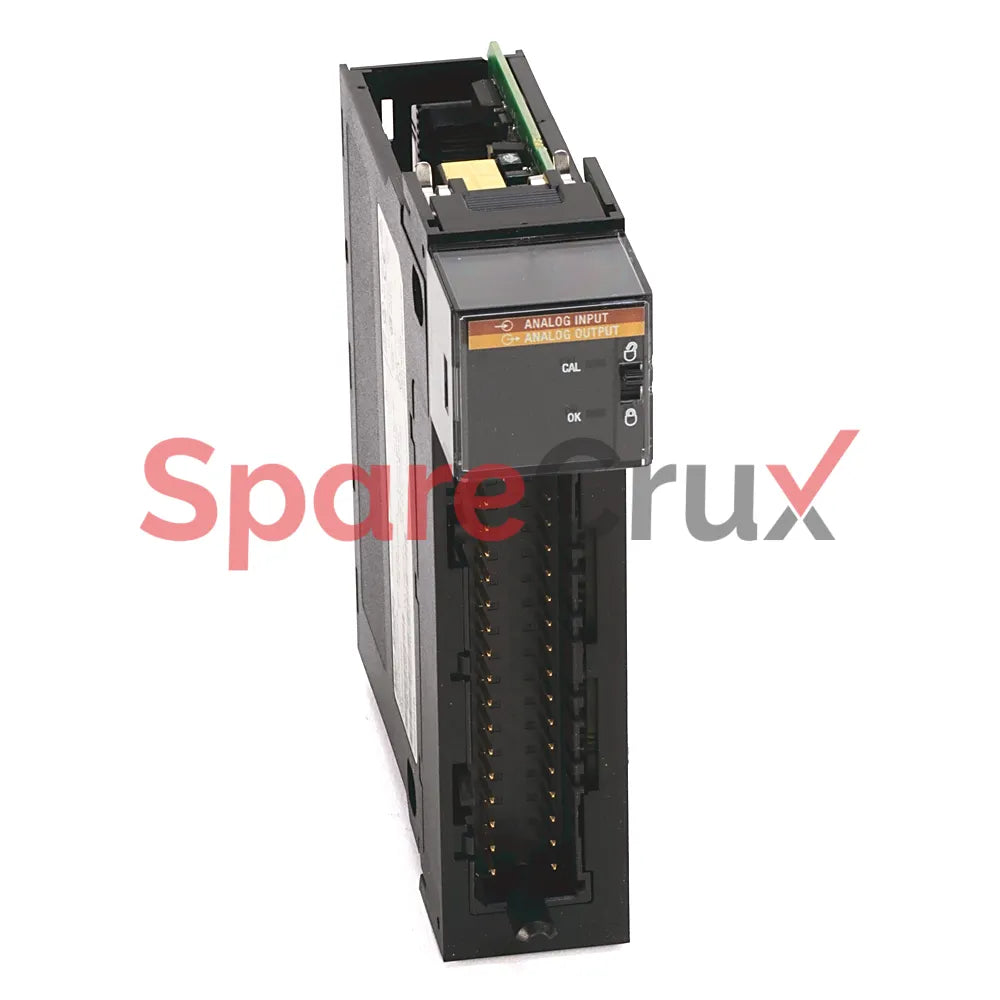

1756-IF4FXOF2F | ALLEN BRADLEY | ControlLogix 4-Channel Analog Input and 2-Channel Analog Output Module
₹ 221,226.75
₹ 187,480.30 (Excl. Tax)
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
1756-IF4FXOF2F
Original Equipment Manufacturer
ALLEN BRADLEY
Description
Description
| Specification | Details |
|---|---|
| Catalog Number | 1756-IF4FXOF2F |
| Module Type | ControlLogix Fast Analog Combination Module |
| Number of Inputs | 4 (Current/Voltage) |
| Number of Outputs | 2 (Current/Voltage) |
| Input Signal Range | ±10V, 0 to 10V, 0 to 5V, 1 to 5V, 0 to 20 mA, 4 to 20 mA |
| Output Signal Range | ±10V, 0 to 10V, 0 to 5V, 1 to 5V, 0 to 20 mA, 4 to 20 mA |
| Resolution | 16 bits |
| Conversion Rate | 250 µs per channel |
| Accuracy | ±0.05% full scale at 25 °C (77 °F) |
| Backplane Current (5.1V) | 300 mA |
| Backplane Current (24V) | 2.5 mA |
| Power Dissipation | 3.5 W |
| Thermal Dissipation | 11.9 BTU/hr |
| Operating Temperature | 0 to 60 °C (32 to 140 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, c-UL-us, RCM |
