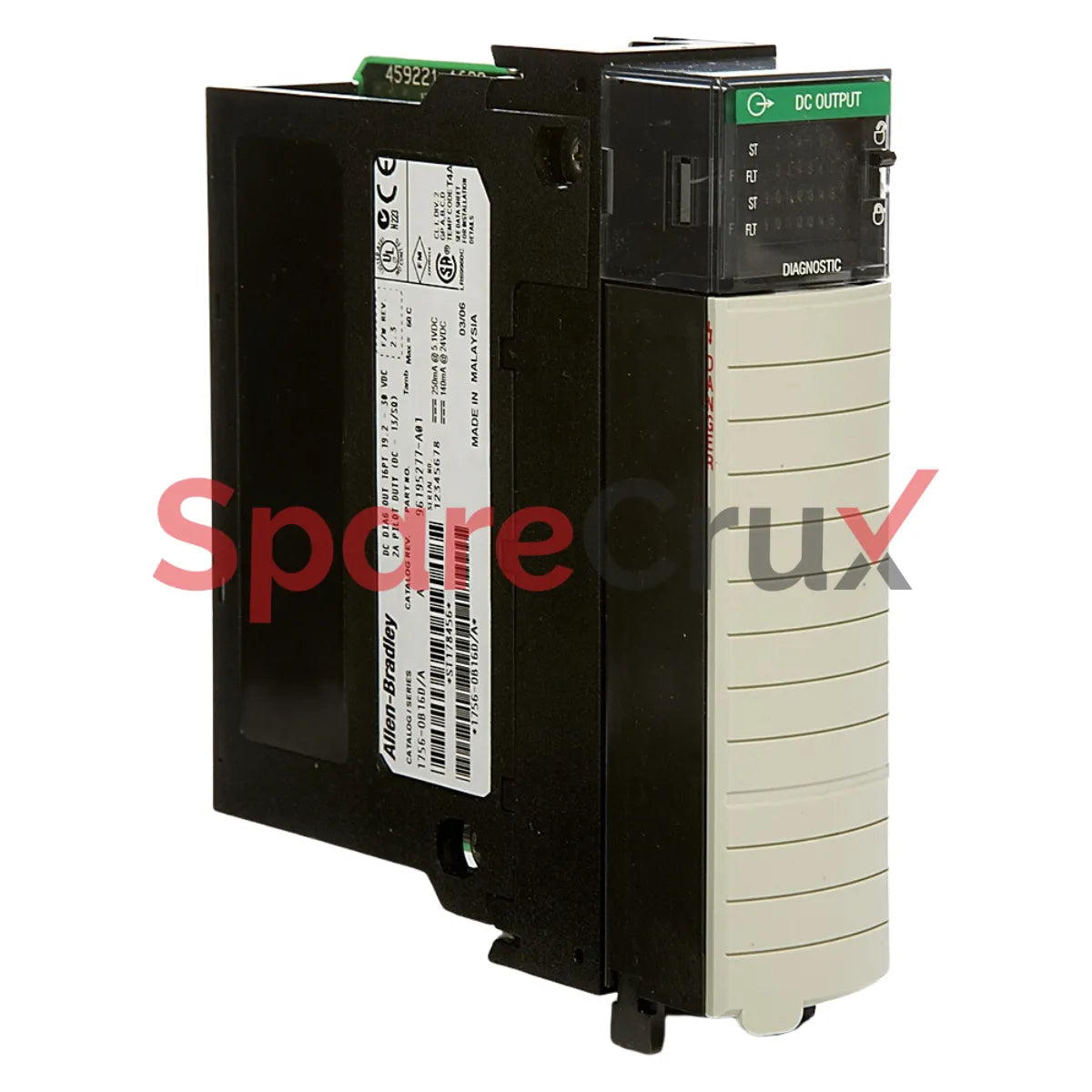

1756-OB16D | ALLEN BRADLEY | ControlLogix 16-Point DC Diagnostic Output Module
₹ 76,740.47
₹ 65,034.30 (Excl. Tax)
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
1756-OB16D
Original Equipment Manufacturer
ALLEN BRADLEY
Description
Description
| Attribute | 1756-OB16D |
|---|---|
| Number of Outputs | 16 (8 points per group) |
| Output Voltage Range | 19.2…30V DC |
| Output Current per Point | 1 A |
| Output Current per Module | 4 A |
| Isolation Voltage | 250V (continuous), basic insulation type, outputs-to-backplane, and output group-to-group. No isolation between individual group outputs. |
| Current Draw @ 5.1V DC | 250 mA |
| Power Dissipation | 4.5 W |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 5…95% non-condensing |
| Vibration | 2 m/s² (0.2 g) @ 10…500 Hz |
| Shock (Operating) | 30 g |
| Shock (Non-operating) | 50 g |
| Certifications | CE, ATEX, IECEx, RCM, c-UL-us |
