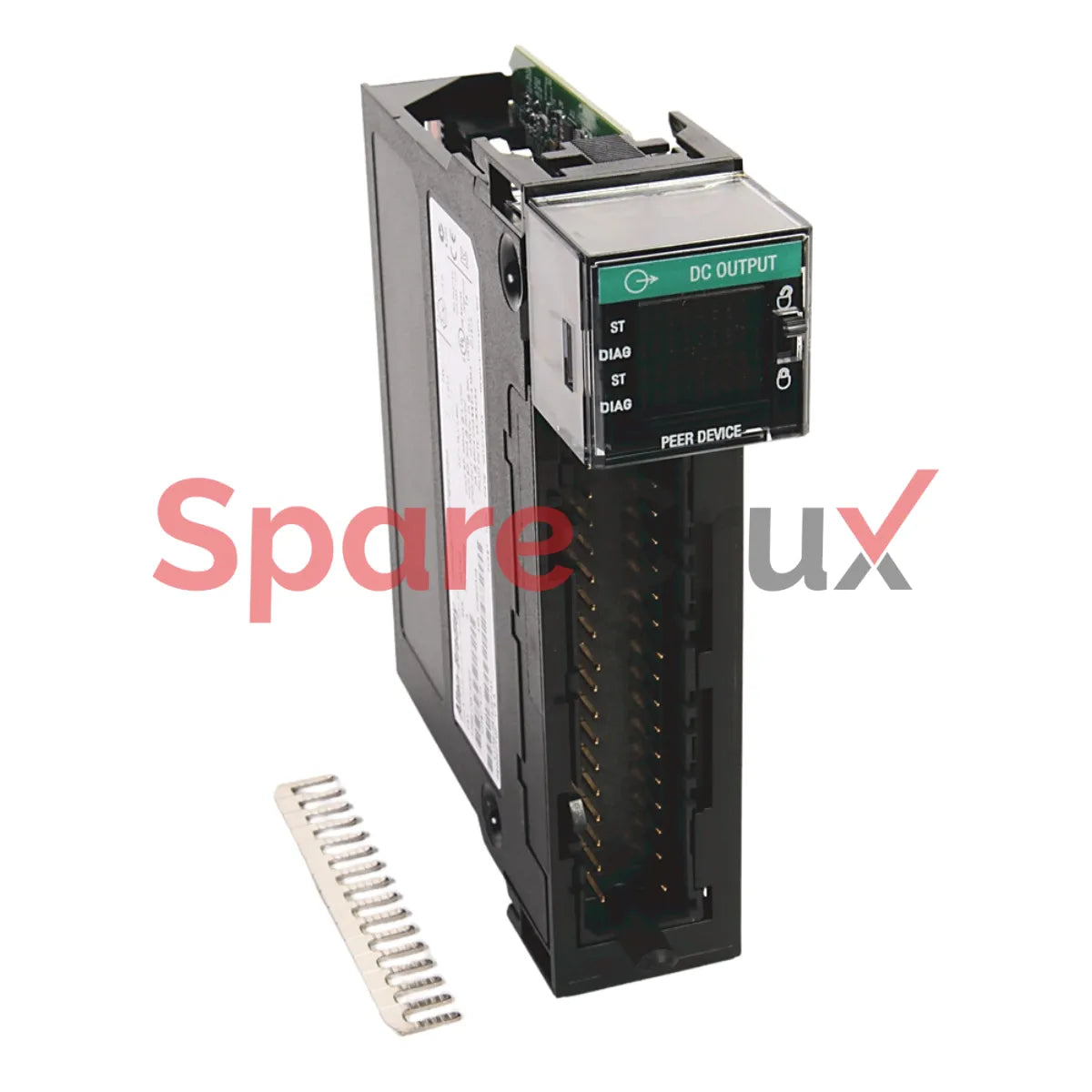

1756-OB16IEFK | ALLEN BRADLEY | ControlLogix 16-Point 10-30V DC Fast Isolated Output Module with PWM, Conformal Coated
₹ 65,936.74
₹ 55,878.59 (Excl. Tax)
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
1756-OB16IEFK
Original Equipment Manufacturer
ALLEN BRADLEY
Description
Description
| Attribute | 1756-OB16IEFK |
|---|---|
| Number of Outputs | 16 individually isolated |
| Output Voltage Range | 10…30V DC |
| Output Current per Point | 1 A |
| Output Delay Time | Off to On: 15 µs nominal On to Off: 15 µs nominal |
| Isolation Voltage | 250V continuous (basic insulation) between individual outputs and backplane |
| Current Draw @ 5.1V DC | 250 mA |
| Power Dissipation | 4.1 W |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 5…95% non-condensing |
| Certifications | CE, c-UL-us |
