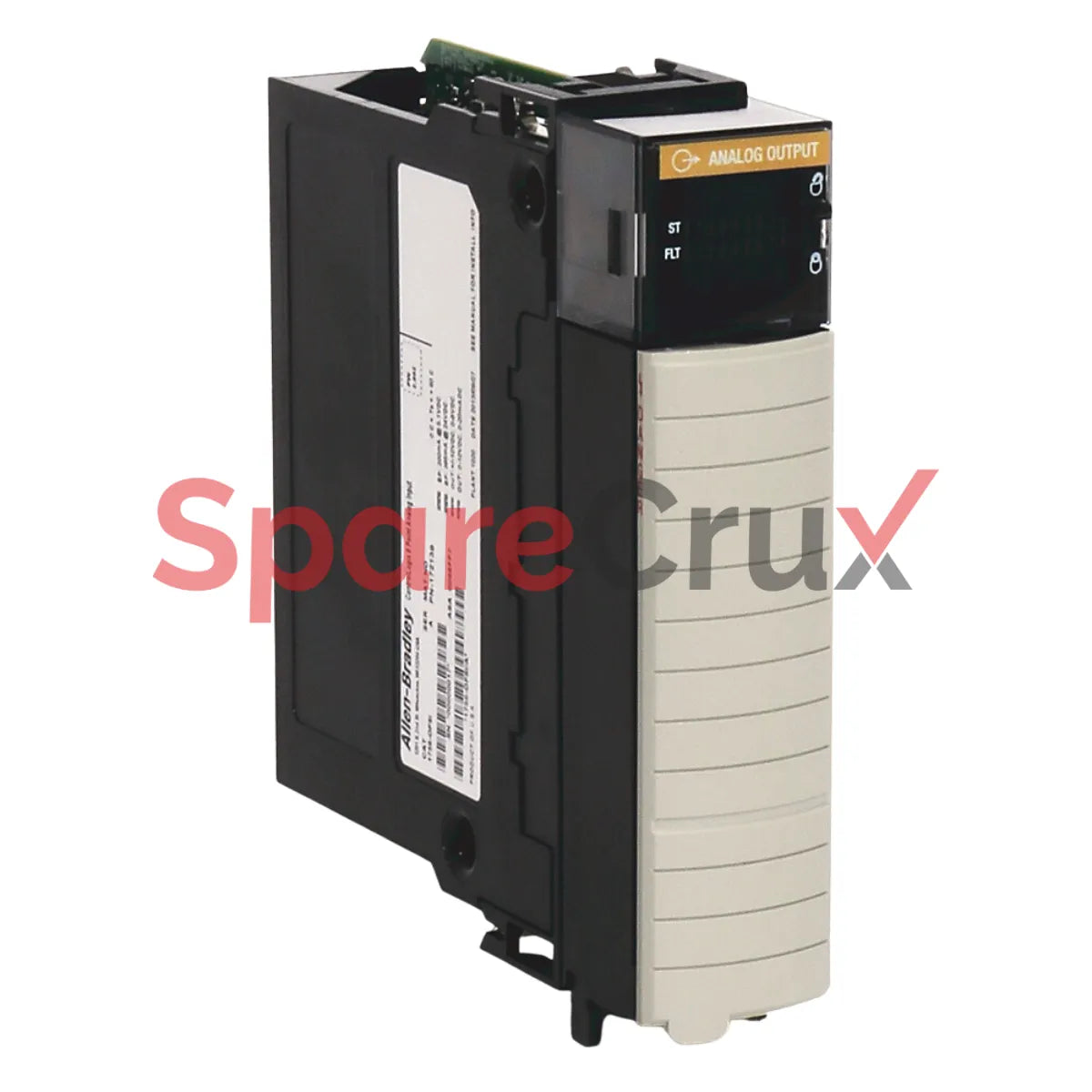

1756-OF8H | ALLEN BRADLEY | ControlLogix 8-Point Analog Output HART Module
₹ 260,677.81
₹ 220,913.40 (Excl. Tax)
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
1756-OF8H
Original Equipment Manufacturer
ALLEN BRADLEY
Description
Description
| Attribute | Value |
|---|---|
| Outputs | 8 single-ended analog outputs with HART communication |
| Output Ranges | ±10V, 0…10V, 0…5V, 0…20 mA, 4…20 mA |
| Resolution | 15 bits across 21 mA for current; 16 bits across 10.5V for voltage |
| Accuracy | ±0.1% of range |
| Conversion Rate | 2.5 ms per channel |
| Current Draw @ 5.1V | 700 mA |
| Current Draw @ 24V | 2 mA |
| Total Backplane Power | 3.57 W |
| Power Dissipation, Max | 6.2 W @ 60 °C (140 °F) |
| Thermal Dissipation | 21.15 BTU/hr |
| Load Impedance | 0…750 Ω for current output; ≥1 kΩ for voltage output |
| Isolation Voltage | 50V (continuous), Basic Insulation Type |
| HART Communication | Compatible with HART 5, 6, and 7 devices |
