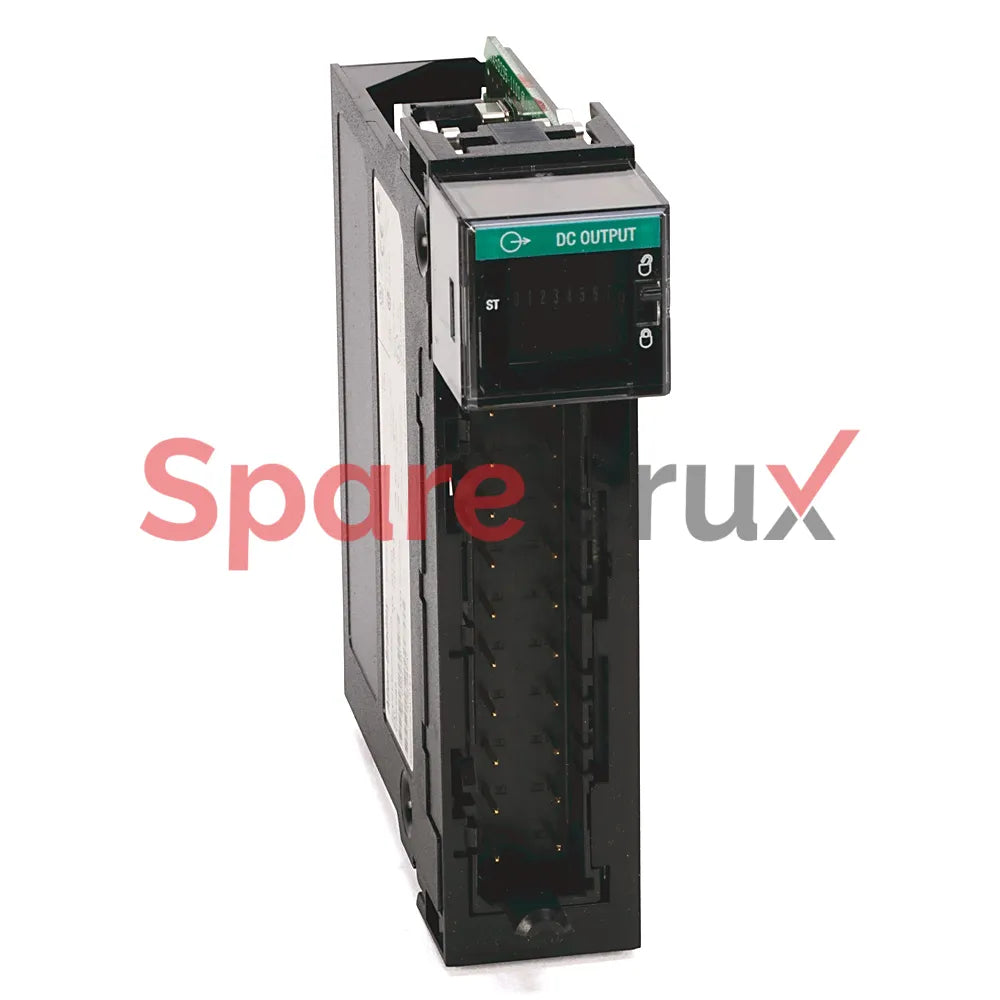

1756-ON8 | ALLEN BRADLEY | ControlLogix 8-Point Digital Output Module

₹ 65,906.07

₹ 55,852.60 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

1756-ON8

Original Equipment Manufacturer

ALLEN BRADLEY

Description
Attribute Value
Outputs 8 digital outputs
Voltage Category 10…30V AC
Operating Voltage Range 10…30V AC
Output Delay Time Off to On: 0.5 ms max; On to Off: 0.5 ms max
Current Draw @ 5.1V 250 mA
Current Draw @ 24V 2 mA
Total Backplane Power 1.32 W
Power Dissipation, Max 2.5 W @ 60 °C (140 °F)
Thermal Dissipation 8.53 BTU/hr
Off-state Leakage Current per Point, Max 0.5 mA per point
On-state Voltage Drop, Max 0.4V AC @ 2 A
Current per Point, Max 2 A @ 60 °C (140 °F)
Current per Module, Max 16 A @ 60 °C (140 °F)
