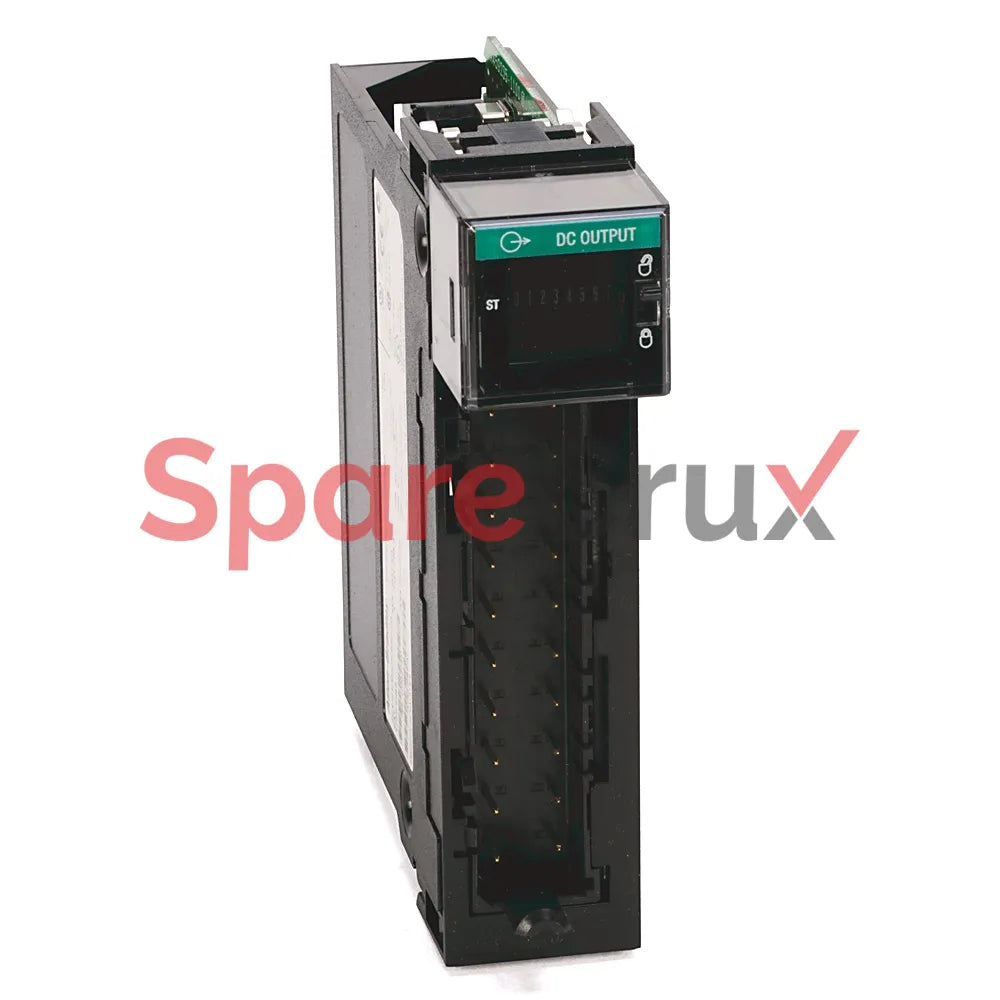

1756-OV16E | ALLEN BRADLEY | ControlLogix 16-Point 10-30V DC Electronically Fused Sinking Output Module

₹ 53,267.77

₹ 45,142.18 (Excl. Tax)

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Manufacturer Part Number (MPN)

1756-OV16E

Original Equipment Manufacturer

ALLEN BRADLEY

Description
Attribute Value
Outputs 16 electronically fused sinking outputs
Voltage Category 10…30V DC
Operating Voltage Range 10…30V DC
Output Delay Time Off to On: 0.1 ms max; On to Off: 1 ms max
Current Draw @ 5.1V 250 mA
Current Draw @ 24V 2 mA
Total Backplane Power 1.32 W
Power Dissipation, Max 2.5 W @ 60 °C (140 °F)
Thermal Dissipation 8.53 BTU/hr
Off-state Leakage Current per Point, Max 0.5 mA per point
On-state Voltage Drop, Max 0.4V DC @ 1 A
Current per Point, Max 1 A @ 60 °C (140 °F)
Current per Module, Max 16 A @ 60 °C (140 °F)
