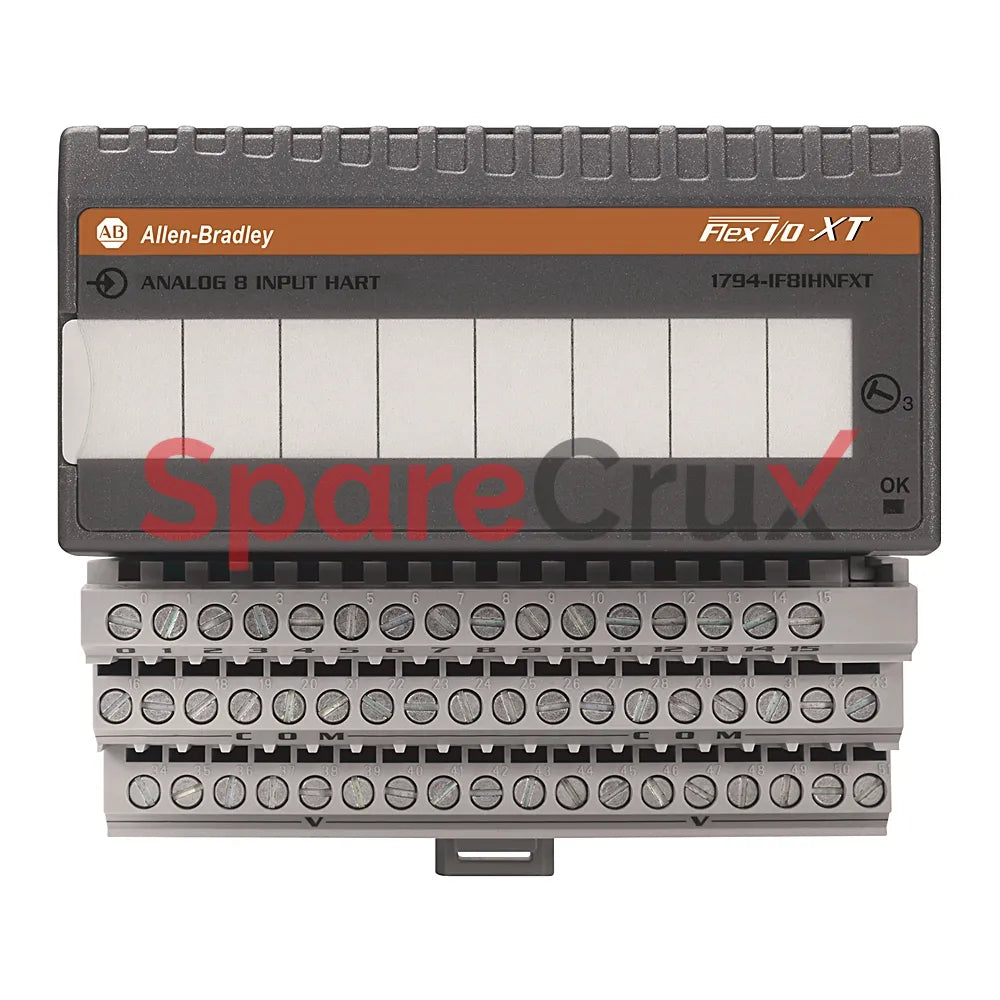

1794-IF8IHNFXT | ALLEN BRADLEY | FLEX I/O 8-Point Isolated HART Analog Input Module, Extended Temperature
₹ 158,253.34
₹ 134,113.00 (Excl. Tax)
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
1794-IF8IHNFXT
Original Equipment Manufacturer
ALLEN BRADLEY
Description
Description
| Specification | Details |
| Product Type | FLEX™ I/O-XT 8-Channel Isolated HART Analog Input Module |
| Function | Provides 8 single-ended isolated analog input channels with HART communication capability for integrating analog signals and HART data into industrial control systems, designed for extreme temperature environments. |
| Input Signal Range | 0…20 mA, 4…20 mA |
| Resolution | 16-bit |
| Conversion Rate | 2.5 ms per channel |
| Accuracy | ±0.1% full scale at 25 °C (77 °F) |
| FlexBus Current | 80 mA at 5V DC |
| Power Supply Voltage | 24V DC nominal, 19.2…31.2V DC (includes 5% AC ripple) |
| Power Supply Current | 190 mA at 24V DC |
| Power Dissipation | 2.5 W maximum |
| Thermal Dissipation | 8.5 BTU/hr maximum |
| Operating Temperature | -20 to 70 °C (-4 to 158 °F) |
| Part Number | 1794-IF8IHNFXT |
| Manufacturer | Allen-Bradley |
