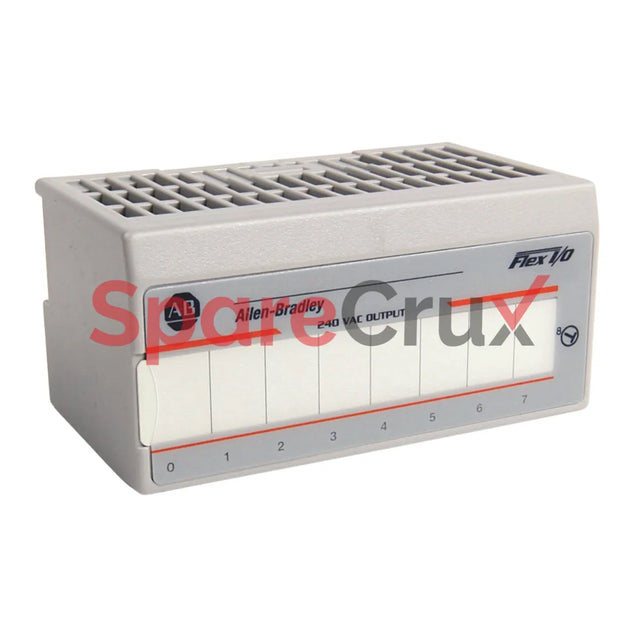

1794-OA8 | ALLEN BRADLEY | Flex 8 Point Digital Output Module
₹ 27,555.22
₹ 23,351.88 (Excl. Tax)
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
1794-OA8
Original Equipment Manufacturer
ALLEN BRADLEY
Description
Description
| Attribute | Value |
|---|---|
| Catalog Number | 1794-OA8 |
| Number of Outputs | 8 |
| Output Voltage Range | 85...132V AC |
| On-State Voltage | 85V AC (min) |
| Off-State Voltage | 20V AC (max) |
| On-State Current per Channel | 10 mA (min) |
| Off-State Leakage Current | 2 mA (max) |
| Flexbus Current | 50 mA at 5V DC |
| Power Dissipation | 4 W |
| Thermal Dissipation | 13.6 BTU/hr |
| Operating Temperature | 0 to 55 °C (32 to 131 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 5% to 95% non-condensing |
| Vibration | 2 g at 10 to 500 Hz |
| Shock (Operating) | 15 g |
| Shock (Non-operating) | 15 g |
| Dimensions (HxWxD) | 94 x 94 x 69 mm (3.7 x 3.7 x 2.7 in.) |
| Enclosure Type Rating | None (open-style) |
| Certifications | UL Listed, CE Marked, c-UL-us, C-Tick, ATEX, KC |
