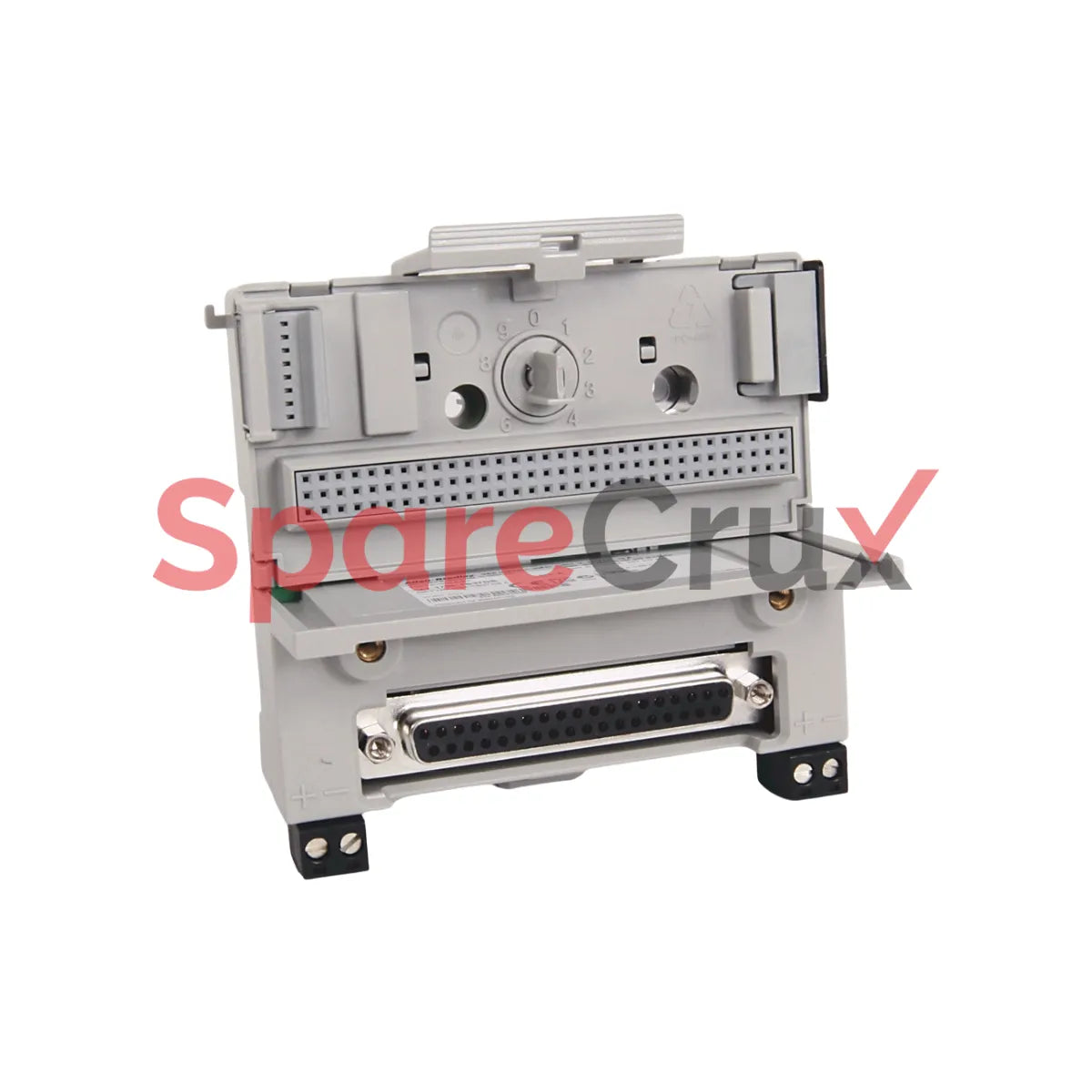

1794-TB37DS | ALLEN BRADLEY | FLEX I/O 37-Pin D-Shell Terminal Base Unit
₹ 14,645.10
₹ 12,411.10 (Excl. Tax)
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
1794-TB37DS
Original Equipment Manufacturer
ALLEN BRADLEY
Description
Description
| Attribute | Value |
|---|---|
| Catalog Number | 1794-TB37DS |
| Termination Type | 37-Pin D-Shell Connector |
| Number of I/O Connections | Supports analog and digital signals |
| Maximum Voltage Rating | Up to 125V AC/DC |
| Current Capacity | 10 A |
| Wiring Category | 2 |
| Purpose | Provides a compact, high-density termination solution for both analog and digital modules, facilitating easy connection via a 37-pin D-shell connector. |
| Operating Temperature | 0 to 55 °C (32 to 131 °F) |
| Storage Temperature | -40 to 85 °C (-40 to 185 °F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (HxWxD) | 94 x 94 x 69 mm (3.7 x 3.7 x 2.7 in.) |
| Enclosure Type Rating | None (open-style) |
| Certifications | UL Listed, CE Marked, c-UL-us, ATEX, KC |
