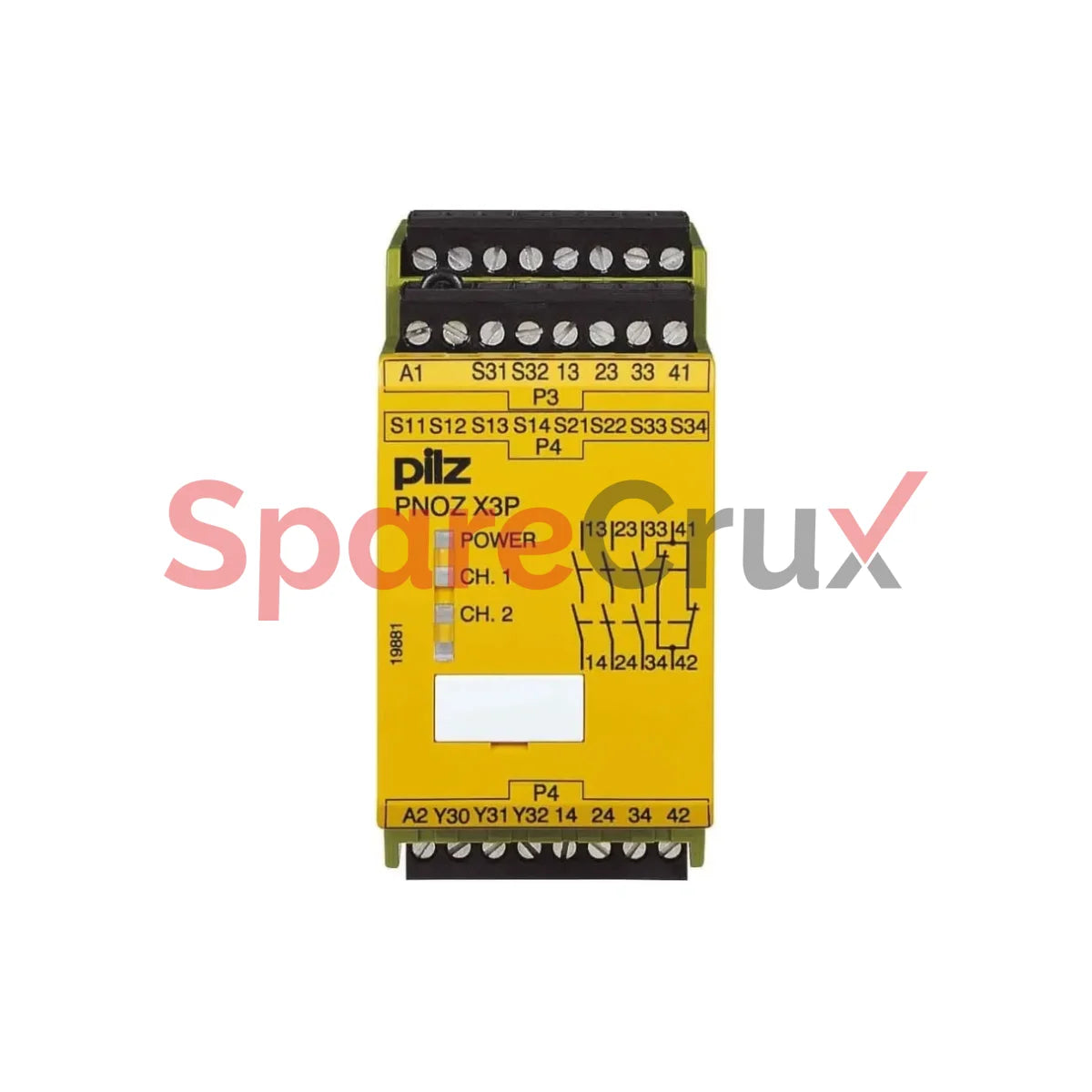

777313 | PILZ | PNOZ X3P 24-240VACDC 3n/o 1n/c 1so
Manufacturer Part Number (MPN)
777313
Original Equipment Manufacturer
PILZ
Description
Description
The Pilz 777313 PNOZ X3P is a versatile safety relay that supports both 24VDC and 240VAC supply voltages. Equipped with 3 Normally Open (n/o) contacts, 1 Normally Closed (n/c) contact, and 1 Safety Output (so), it is perfect for use in diverse industrial safety applications. This relay is designed to ensure the highest safety standards in control systems.
Key Features:
- 3 Normally Open (n/o) contacts, 1 Normally Closed (n/c) contact, and 1 Safety Output (so)
- Wide voltage range: 24-240VAC/DC
- Reliable and compliant with international safety standards
Applications:
- Safety control systems
- Emergency stop and fault detection circuits
- Industrial automation and monitoring
Technical Specifications:
| Product Type: | Safety Relay |
| Model: | 777313 |
| Supply Voltage: | 24-240VAC/DC |
| Contacts: | 3 Normally Open (n/o), 1 Normally Closed (n/c), 1 Safety Output (so) |
| Inputs: | Emergency stop, safety monitoring |
| Outputs: | Relay and safety outputs |
| Housing Material: | Plastic (IP20 rated) |
| Mounting Type: | DIN rail mounting |
| Dimensions (W x H x D): | 90 x 90 x 120 mm |
| Operating Temperature: | -10°C to +55°C |
| Operating Humidity: | 95% RH (non-condensing) |
| Certification: | CE, UL, TÜV |
