ADOD24V | CONNECTWELL | Slim Relay Adapter - Output Side 24VDC
₹ 1,776.61
₹ 1,505.60 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
ADOD24V | CONNECTWELL | Slim Relay Adapter - Output Side 24VDC
Manufacturer Part Number (MPN)
ADOD24V
Original Equipment Manufacturer
CONNECTWELL
Description
Description

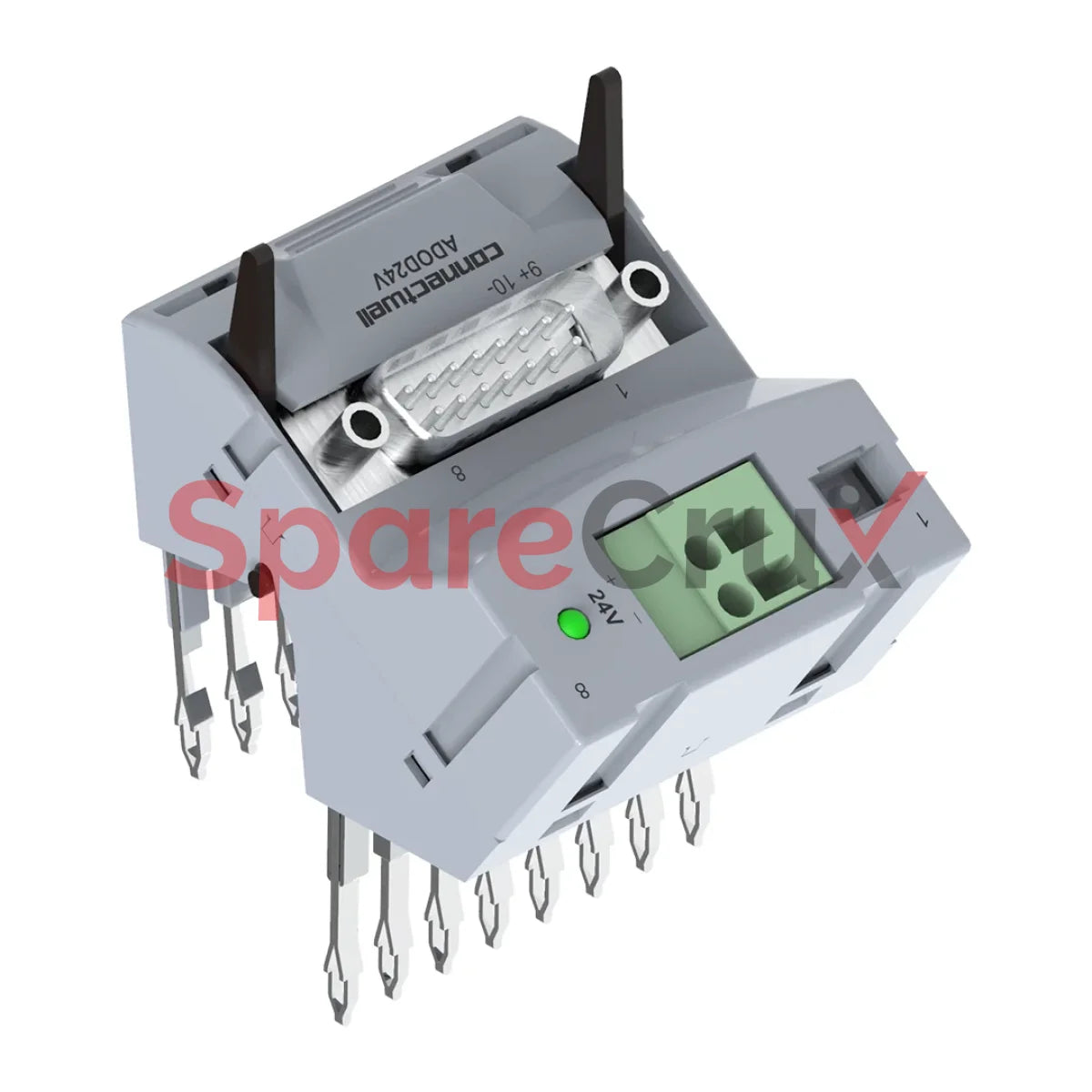

Wiring the electrical control panel take huge amount of time, The CW Slim Relay Adapter is an easy plug in accessory used for slim relay to connect it with the PLC/DCS Input or Output System. Thanks to compact, easy solution which allow user for quick and error free connections for wide range for applications. With the help of this pluggable slim relay adapter and prefab cable from Connectwell you can save up to 95% time over conventional screw or spring connection.annels.
Technical Data
| Conductor Cross Section in AWG | 12 AWG |
| Conductor Cross Section in sq. mm | 2.5 mm² |
| Height | 56.25 mm |
| Length | 47.52 mm |
| Rated Current | 2 A |
| Rated Voltage | 24 V |
| Suitable For | Slim Relay |
| Torque | 0.4 Nm |
| Width (Thickness) | 53.7 mm |
