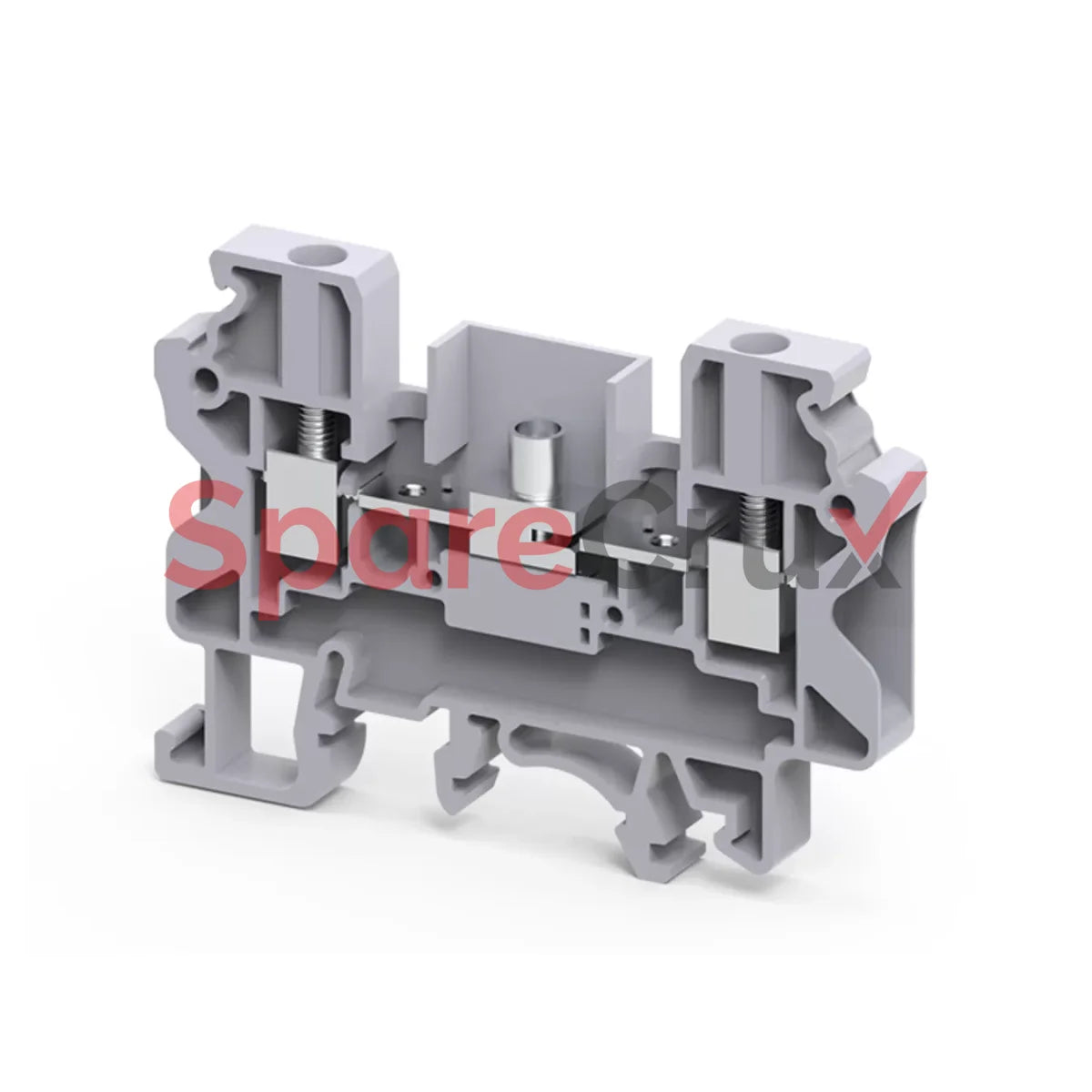

CDS4U | CONNECTWELL | 4 sq.mm Disconnect & Test Terminal Block in Grey
₹ 48.14
₹ 40.80 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CDS4U | CONNECTWELL | 4 sq.mm Disconnect & Test Terminal Block ...
₹ 40.80
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
CDS4U
Original Equipment Manufacturer
CONNECTWELL
Description
Description
The CDS4U Disconnect & Test Terminal Block is used for measuring, control and regulatory circuits. They provide a clear functional advantage for devices having utility instruments and associated transformers. Separate testing points facilitate insertion of test probes. Disconnection is achieved by means of a slide link operated with a screw driver.
Technical Data
| Rated Voltage | 800 V |
| Rated Current | 32 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide |
| Standard Colour | Grey |
| Product Function | Sliding Type Disconnect and Test |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M3 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
