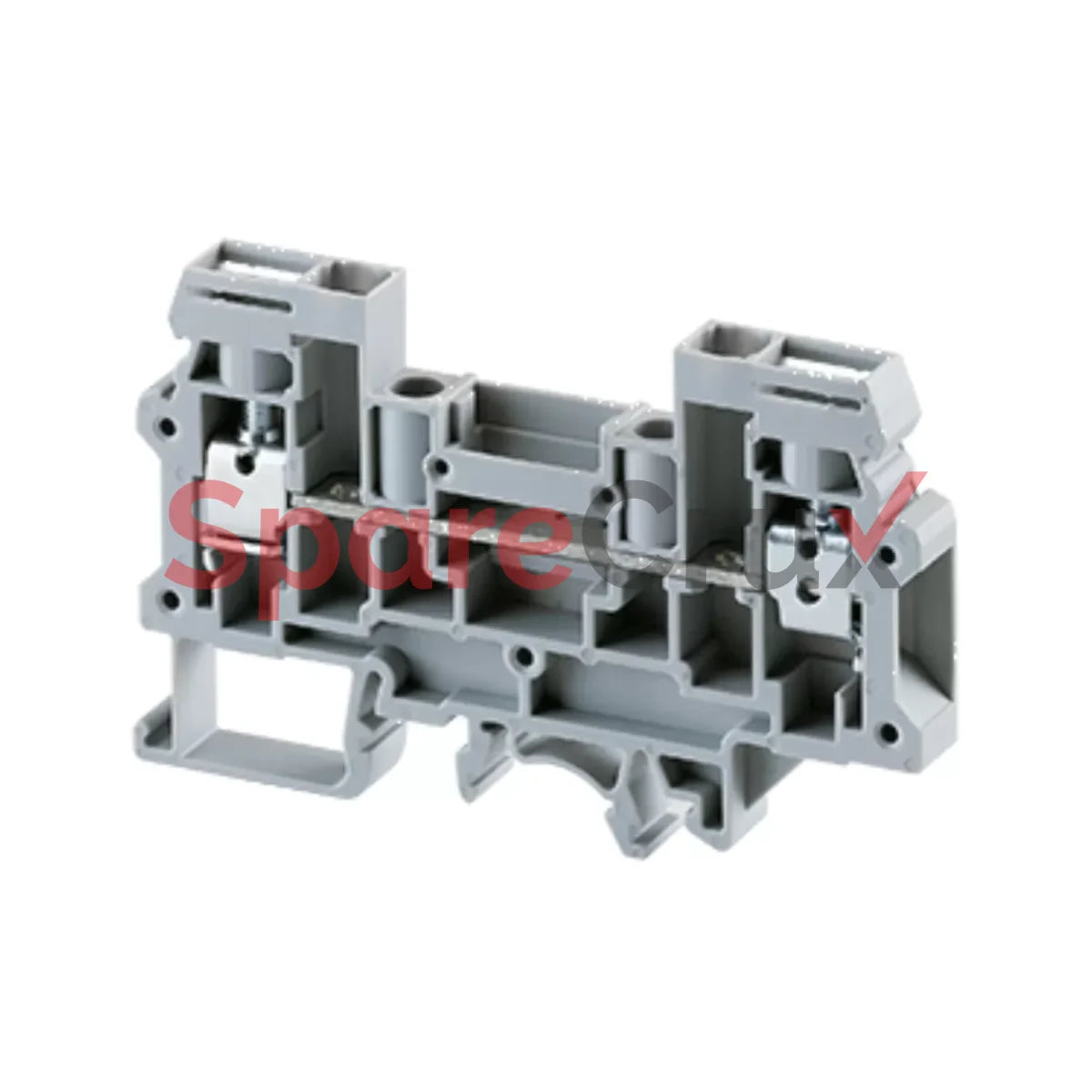

CDS6U/FT | CONNECTWELL | 6 sq.mm Disconnect & Test Terminal Block in Grey
₹ 60.13
₹ 50.96 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CDS6U/FT | CONNECTWELL | 6 sq.mm Disconnect & Test Terminal Blo...
₹ 50.96
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
CDS6U/FT
Original Equipment Manufacturer
CONNECTWELL
Description
Description
The CDS6U/ft Disconnect & Test Terminal Block is used for measuring, control and regulatory circuits. they provide a clear functional advantage for devices having utility instruments and associated transformers. Separate testing points facilitate insertion of test probes. Disconnection is archived by means of a slide link operated with a screw driver.in cds6u/ft, the insulates test point screw system(TPSLS) is integrated.in cds6u/ft Terminal block is a standard feed through terminal block.
Technical Data
| Rated Voltage | 1000 V |
| Rated Current | 41 A |
| Tightening Torque | 0.8 Nm |
| Housing Material | Polyamide |
| Product Function | Sliding Type Disconnect and Test |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M3.5 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
