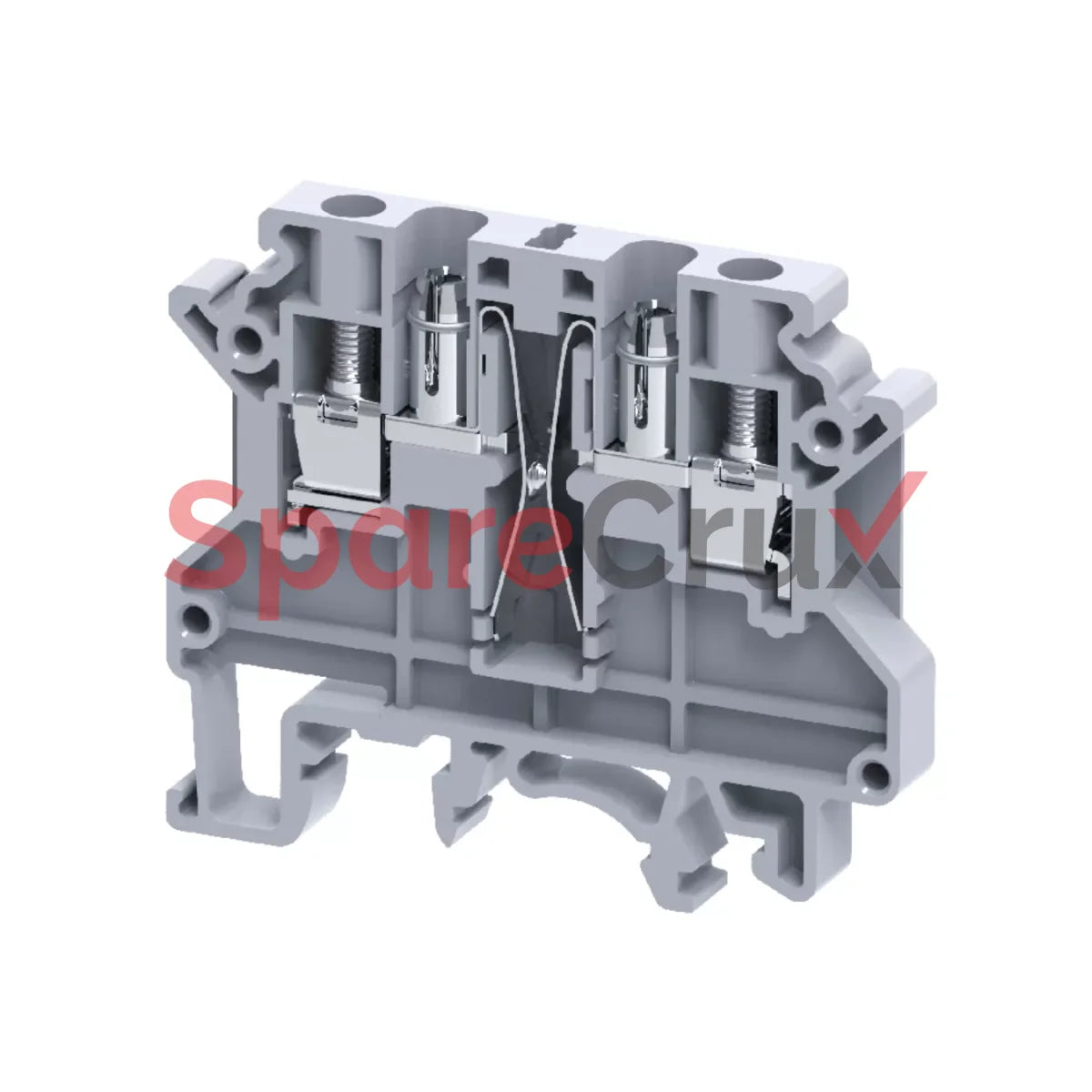

CDT4 | CONNECTWELL | 4 sq.mm Disconnect & Test Terminal Block in Grey
₹ 96.67
₹ 81.92 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CDT4 | CONNECTWELL | 4 sq.mm Disconnect & Test Terminal Block i...
₹ 81.92
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
CDT4
Original Equipment Manufacturer
CONNECTWELL
Description
Description
Disconnect Test Terminal Block mainly used for metering circuit. Test Terminal Blocks can be used for testing a wide range of electrical equipment including integrating meters and protective relays, without disturbing the normal load circuit. These Terminal Blocks reduces the possibility of damage to the current transformers.
Technical Data
| Rated Voltage | 800 V |
| Rated Current | 10 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide |
| Standard Colour | Grey |
| Product Function | Knife Type Discconnect and Test |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M3 |
| Operated by | Screw Driver |
| Rated Surge Voltage | 6 KV |
| Pollution Degree | 3 |
