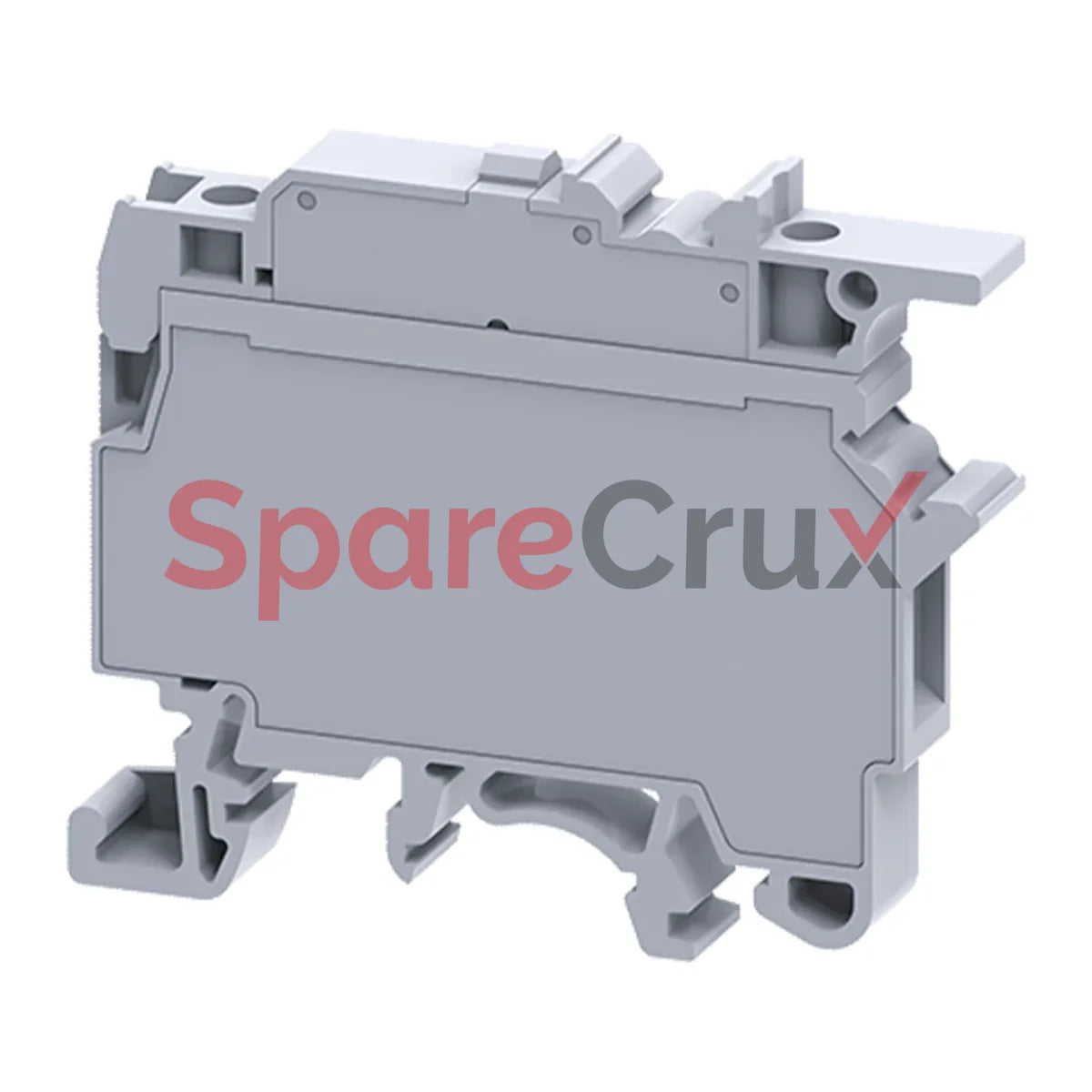

CF4UL110-240V | CONNECTWELL | 4 sq.mm Fuse Terminal Block With Indication Suitable For 110-240V
₹ 61.08
₹ 51.76 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CF4UL110-240V | CONNECTWELL | 4 sq.mm Fuse Terminal Block With Indi...
Manufacturer Part Number (MPN)
CF4UL110-240V
Original Equipment Manufacturer
CONNECTWELL
Description
Description
These Terminal Blocks are used in electrical and control systems which require fuse protection. The CF series accepts industry standard 5 x 20 mm and 5 x 25 mm glass cartridge fuses. These blocks are completely closed and do not need a separate end plate. CF4UL series Terminal are used for offline indication in case of a fuse blow out.
Technical Data
| Rated Voltage | 800 V |
| Rated Current | 6.3 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide |
| Standard Colour | Grey |
| Product Function | Single Level Fuse with Indication |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M3 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
