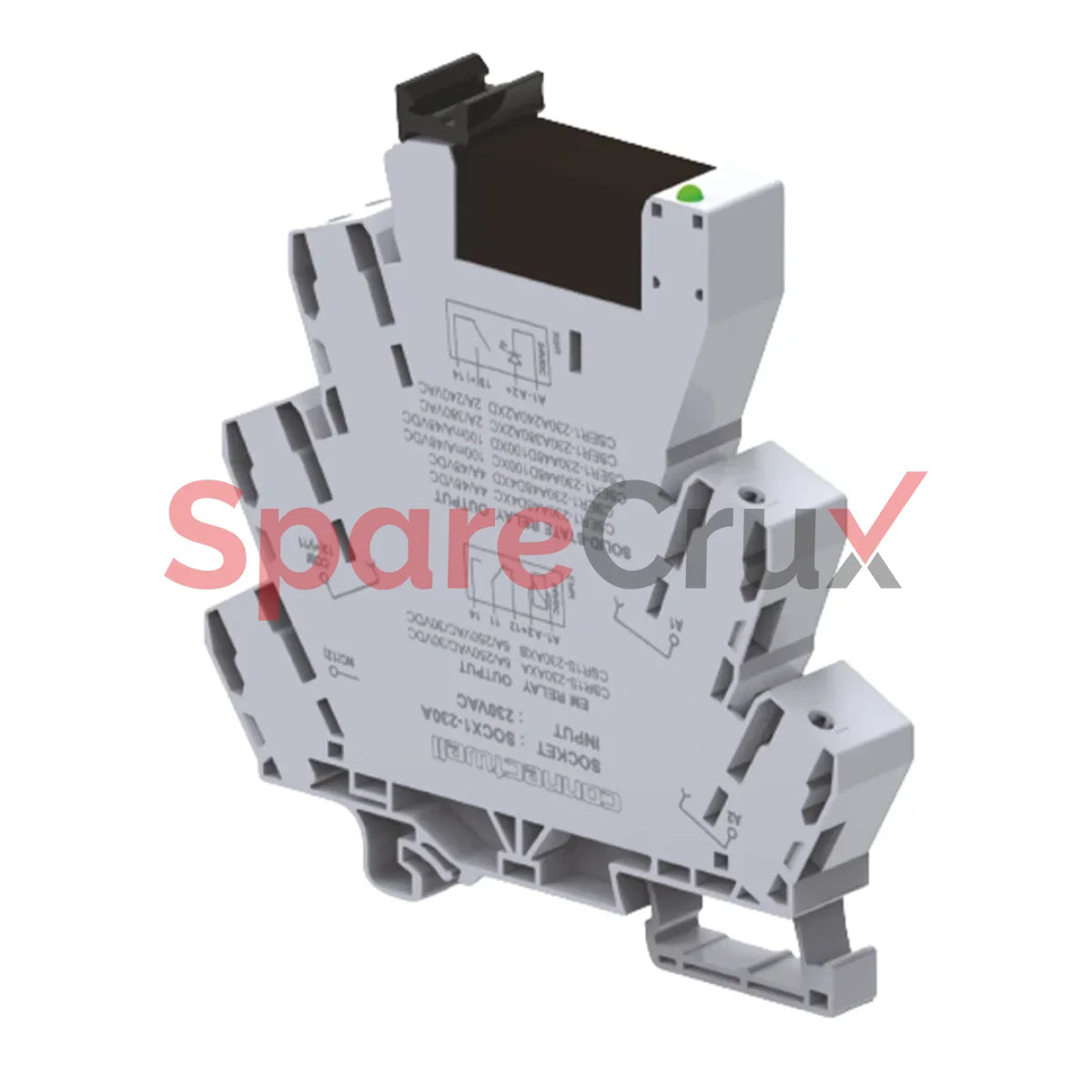

CSR2S-24UYC | CONNECTWELL | 2CO 24 VAC/VDC Slim Relay With Pluggable Relay Rail Mount
₹ 743.87
₹ 630.40 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CSR2S-24UYC | CONNECTWELL | 2CO 24 VAC/VDC Slim Relay With Pluggabl...
Manufacturer Part Number (MPN)
CSR2S-24UYC
Original Equipment Manufacturer
CONNECTWELL
Description
Description
-Compact & thin design
-Variety of Operating Voltages.
-High switching current : up to 8A at 24VDC/250VAC
-low coil power consumption.
-LED Indication on Coil activation.
-No requirement on polarity of input voltage
-Possibility of Jumpering Multiple slim relays together
Technical Data
| Bussing Possibility | Yes, By using shorting link |
| Supply Voltage Indication | Green LED |
| Ambient Operating Temperature | -40 to +55 °C |
| Mounting Possibility | DIN 35/DIN 35-15 Rail |
| Housing Material | PA 6,6 (V0) |
| Housing Colour | Grey |
| Rated Input voltage | 24 V |
| Input Polarity Protection | Rectifier |
