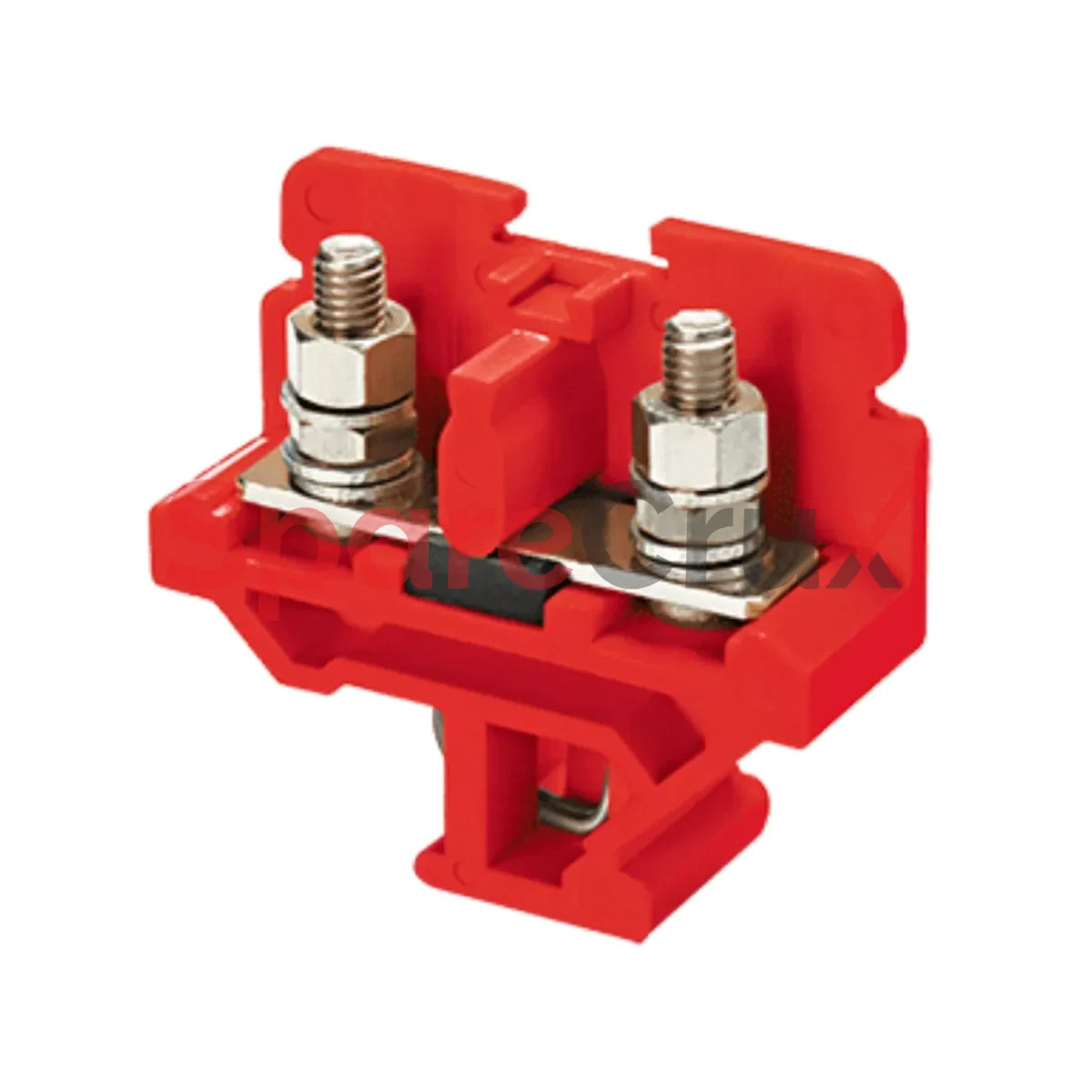

CSTSN5R | CONNECTWELL | 16 sq.mm Stud Type Terminal Block in Red
₹ 62.68
₹ 53.12 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CSTSN5R | CONNECTWELL | 16 sq.mm Stud Type Terminal Block in Red
₹ 53.12
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
CSTSN5R
Original Equipment Manufacturer
CONNECTWELL
Description
Description
- The wire is crimped to ring /fork type Lug (Ferrule) and is screwed on to flat current bar on the Terminal Block .The range includes Terminal Blocks for wire sizes from 1.5 to 16 sq mm.
- Cross connection can be achieved with the aid of external shorting links.
- These Terminal Blocks are preferred for applications where the connections are subjected to severe vibrations.
- It is recommended to use Protective Covers in transparent plastic to fully shroud these assemblies.
Technical Data
| Rated Voltage | 1000 V |
| Rated Current | 76 A |
| Tightening Torque | 2 Nm |
| Housing Material | Melamine |
| Product Function | Feed Through |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32 Rail |
| Stud Size | M5 |
| Operated by | Nut Driver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
