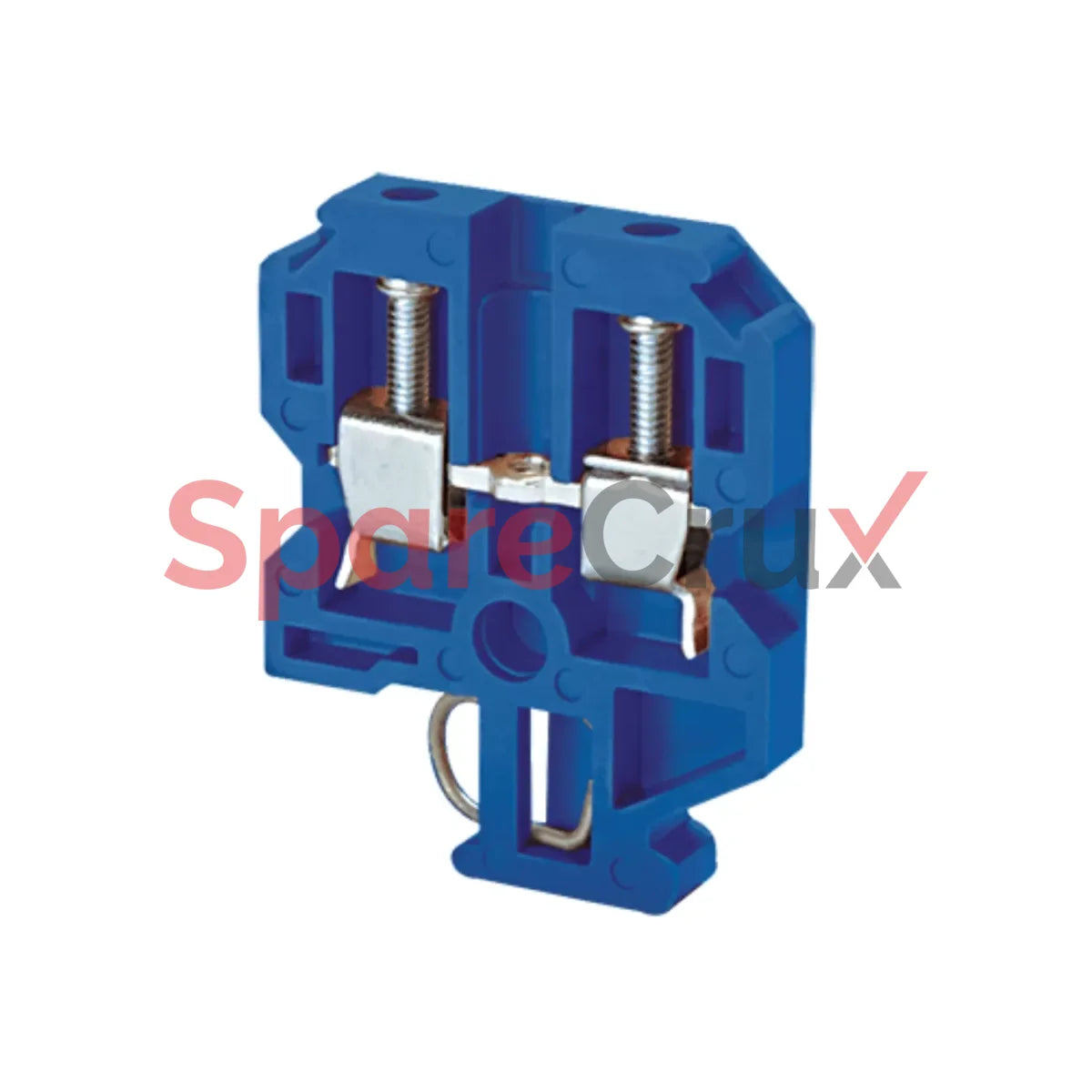

CTS2.5BU | CONNECTWELL | 4 sq. mm Feed Through Terminal Block in Blue
₹ 16.90
₹ 14.32 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
CTS2.5BU | CONNECTWELL | 4 sq. mm Feed Through Terminal Block in Blue
₹ 14.32
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
CTS2.5BU
Original Equipment Manufacturer
CONNECTWELL
Description
Description
- 4.0 sq.mm Feed Through Terminal Blocks are the most Versatile terminals for control, Automation, Instrumentation and Power Distribution applications. These Terminal Block are ideal choice for use in High Temperature applications. These Terminal Blocks can be mounted on standard rail and available for wire sizes 2.5 to 4.0 sq mm.
- These Terminal Blocks have marker holding recesses to accept marking tags for circuit identification. Cross connection can be achieved with the aid of shorting links / sleeves & screws. The specially designed Knock Out at the center must be removed to facilitate Permanent shorting.
Technical Data
| Rated Voltage | 800 V |
| Rated Current | 32 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Melamine |
| Product Function | Feed Through |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32 Rail |
| Screw Size | M2.5 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
