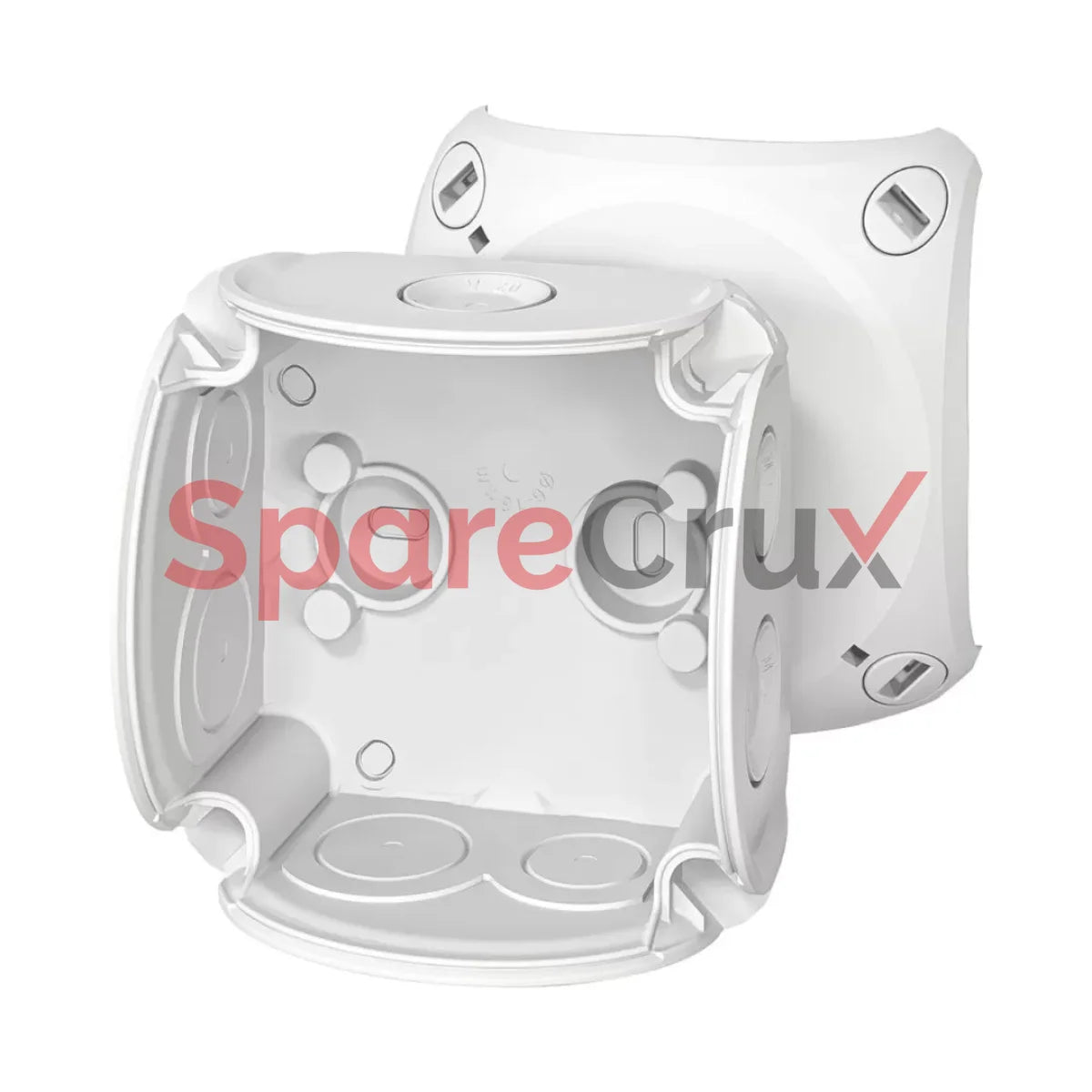

DK 1616 G | HENSEL | Cable Junction Box
₹ 3,049.12
₹ 2,584.00 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
DK 1616 G | HENSEL | Cable Junction Box
₹ 2,584.00
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
DK 1616 G
Original Equipment Manufacturer
HENSEL ELECTRIC
Description
Description
DK 1616 G
- 6-16 mm², Cu 3~
- terminal with 2 clamping units per pole
- 5-pole per pole 6 x 6 mm² r / f, 4 x 10 mm² r / f, 4 x 16 mm² s / f, 4 x 25 mm² s / f, 2 x 35 mm² s / f
- included cable entry: 3 x ESM 40, sealing range Ø 17-30 mm
- with two cable entries M 32 from the rear side
- lid fasteners sealable without accessories
- external brackets for wall fixing included
- colour: grey, RAL 7035
Technical Data
| rated insulation voltage | Ui = 690 V a.c./d.c. |
| rated current: | 102 A |
| material | PC (Polycarbonate) |
| degree of protection | IP 55 (ESM) |
| degree of protection | IP 66 (AKM) |
| width | 210 mm |
| height | 155 mm |
| depth | 92 mm |
| weight | 0,738 kg |
| tightening torque for terminal | 3.0 Nm |
| in accordance with | IEC 60670-22 |
