DK 3535 G | HENSEL | Cable junction box
₹ 15,373.04
₹ 13,028.00 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

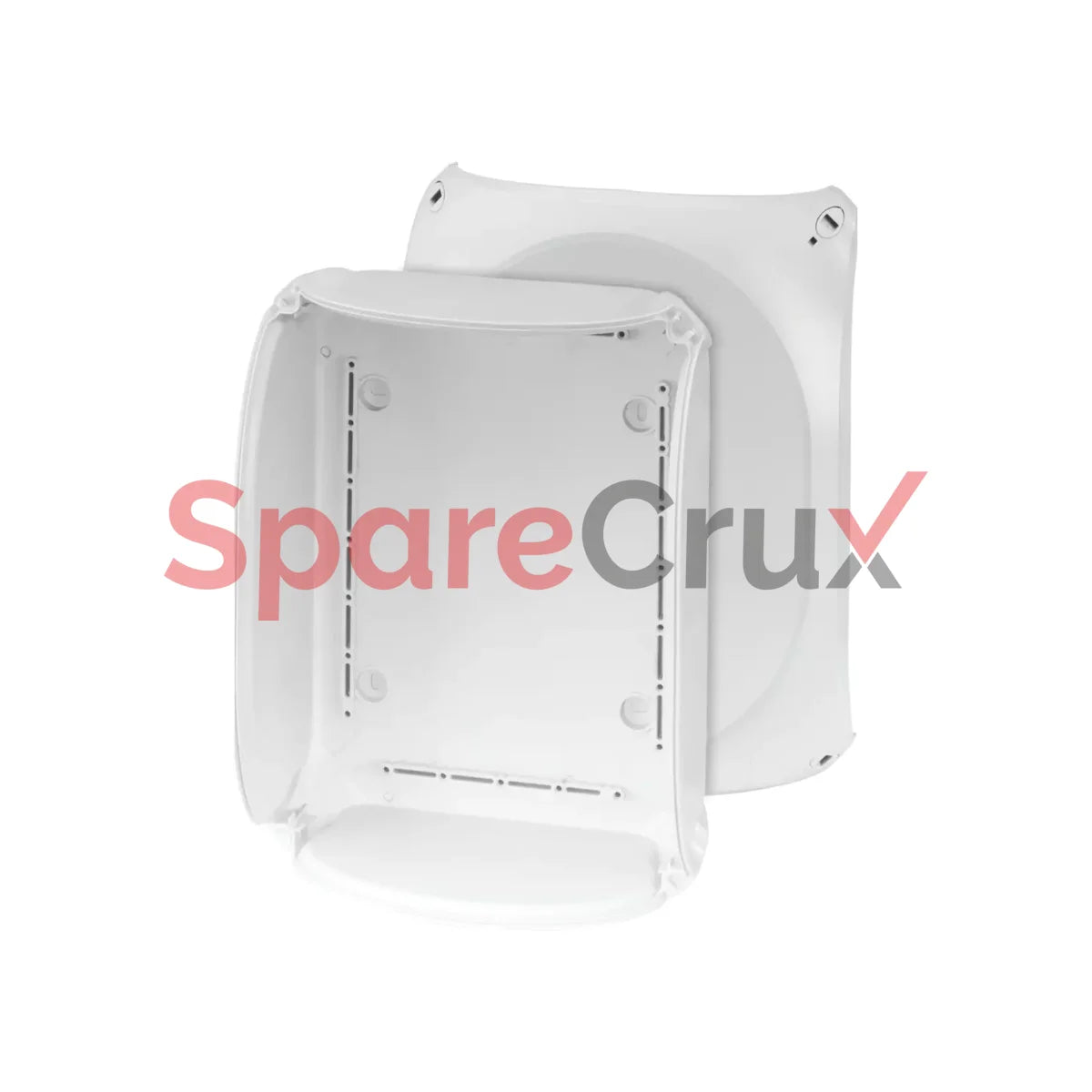

DK 3535 G | HENSEL | Cable junction box
₹ 13,028.00
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
DK 3535 G
Original Equipment Manufacturer
HENSEL ELECTRIC
Description
Description
DK 3535 G
- 16-35 mm², Cu 3~
- Terminal with 2 clamping units per pole
- 5-pole per pole 6 x 16 mm² s, 4 x 25 mm² s, 4 x 35 mm² s, 2 x 50 mm² s
- Included cable entry: 3 x ESM 40, sealing range Ø 17-30 mm
- With two cable entries M 32 from the rear side
- Lid fasteners sealable without accessories
- External brackets for wall fixing included
- Colour: grey, RAL 7035
Technical Data
| Rated insulation voltage | Ui = 690 V a.c./d.c. |
| Rated current: | 125 A |
| Material | PC (Polycarbonate) |
| Degree of protection | IP 55 (ESM) |
| Degree of protection | IP 66 (AKM) |

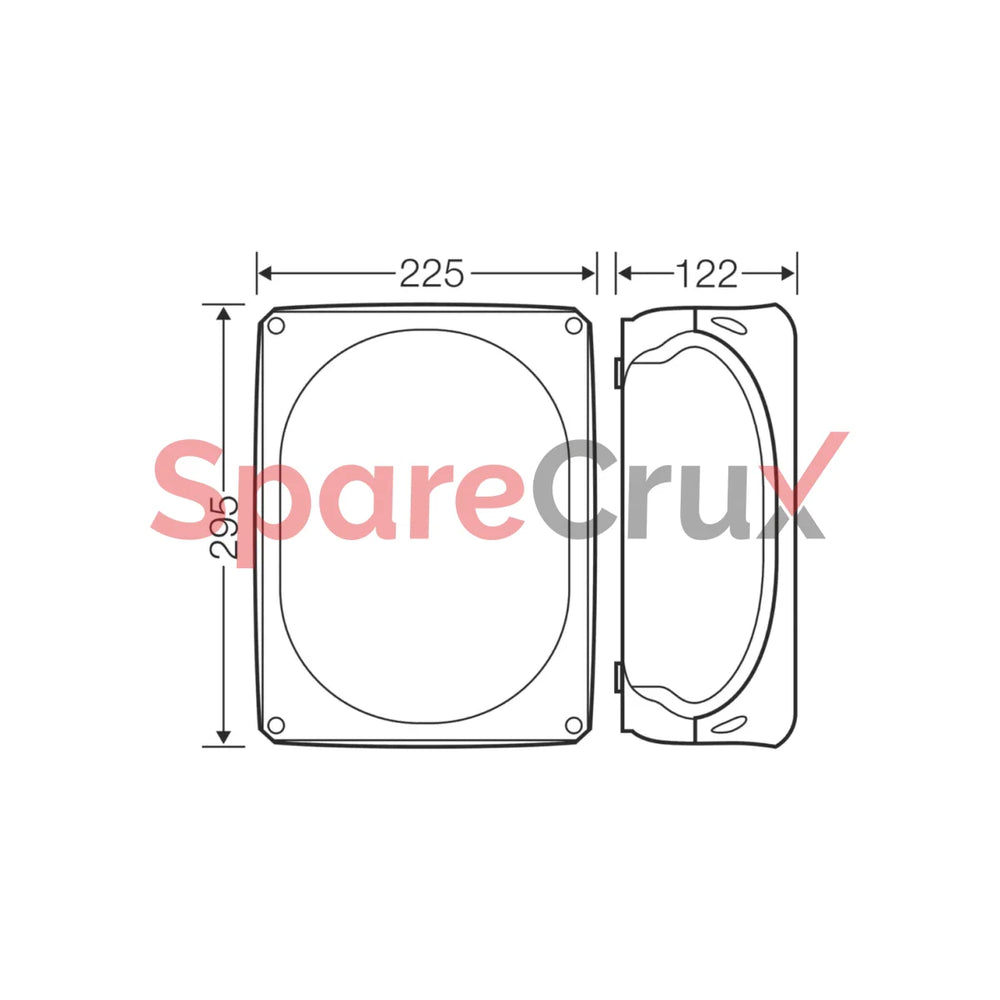

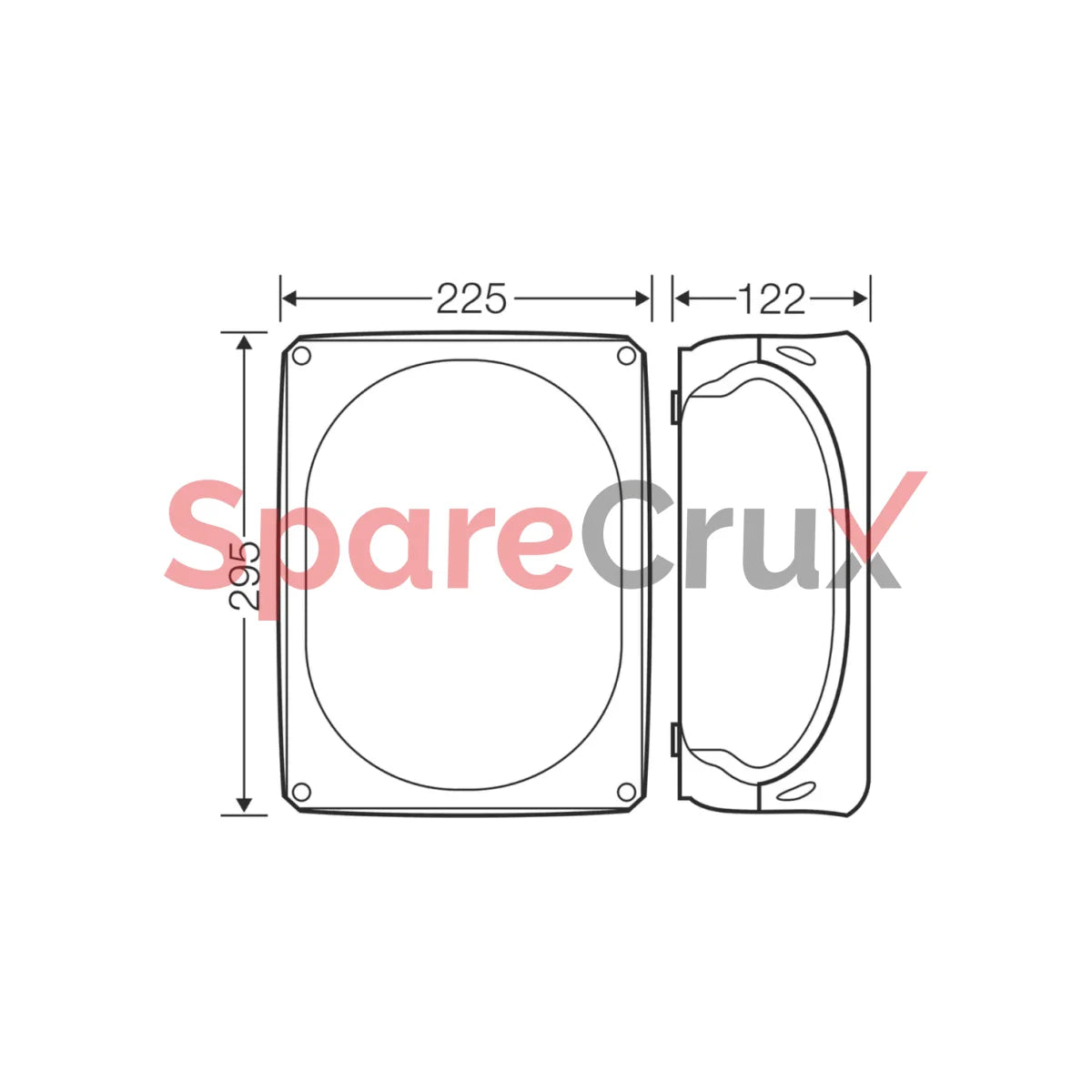

| Width | 295 mm |
| Height | 225 mm |
| Depth | 122 mm |
| Weight | 2,186 kg |
| Tightening torque for terminal | 12.0 Nm |
| In accordance with | IEC 60670-22 |
