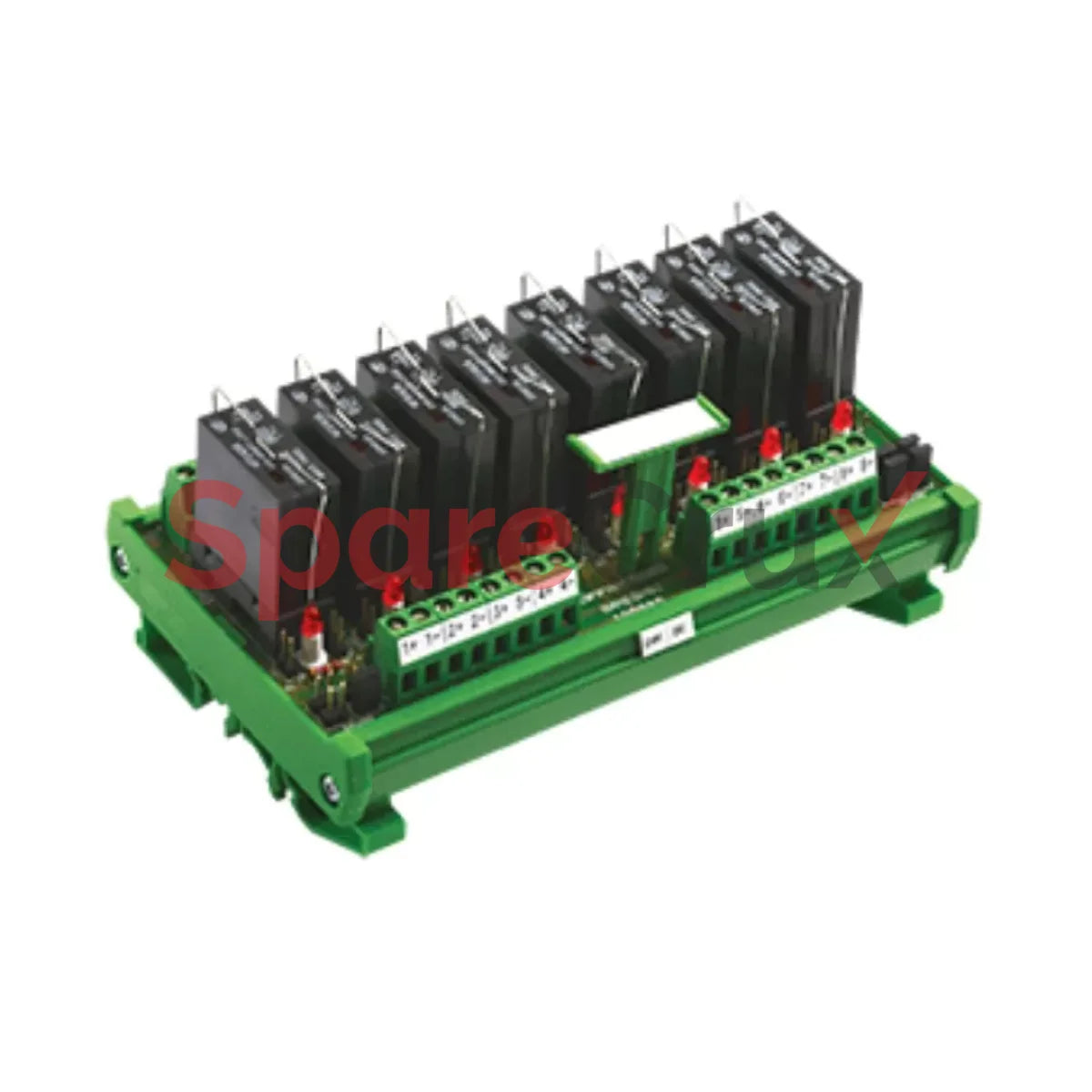

IMERS8/05D400A3 | CONNECTWELL | 8CH 5VDC In 400VAC Out 3A SSR Module With Base (Pluggable Relay) Rail Mount
₹ 6,669.36
₹ 5,652.00 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
IMERS8/05D400A3 | CONNECTWELL | 8CH 5VDC In 400VAC Out 3A SSR Modul...
Manufacturer Part Number (MPN)
IMERS8/05D400A3
Original Equipment Manufacturer
CONNECTWELL
Description
Description
-Variety of Operating Voltages.
-Low Drive Current (20 mA)
-2500V Dielectric Strength
-LED Status Indicator
-Photo Isolation -Built-In Snubber (AC Output)
-Zero Cross Turn-On (AC Output)
-Bipolar Transistor / MOSFET Output(DC Output)
-Mounting options available : DIN Rail Mounting & Panel Mounting -Easy to replace pluggable SSR.
-Replaceable fuses with simple to operate Horizontal Fuse holders -Fast Blow &Slow Blow Fuses available as standard
-Fuse rating from 0.1 A to 6.3 A.
Technical Data
| Bussing Possiblity | By using spare jumpers. |
| Supply Voltage Indication | 3mm Red LED |
| Ambient Operating Temperature | -20 to +50 °C |
| Mounting Possibility | DIN32 / DIN35 / DIN35-15 / PANEL |
| Housing Material | PVC / V0 Grade |
| Housing Colour | Green |
| Rated Input voltage | 5 VDC |
| Rated output voltage | UPTO V |
