KF 0400 C | HENSEL | Cable Junction Box IP 66/67/39
₹ 594.72
₹ 504.00 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
KF 0400 C | HENSEL | Cable Junction Box IP 66/67/39
₹ 504.00
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
KF 0400 C
Original Equipment Manufacturer
HENSEL ELECTRIC
Description
Description
KF 0400 C
- Without terminals
- Box walls without knockouts
- Wall surface can be drilled individually for cable entry max. M25
- "Weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
- Saltwater-proof
- "Offshore applications"
- Lid fasteners sealable without accessories
- Retaining strap and external brackets for wall fixing included
- Colour: black, RAL 9011
Technical Data
| Wall thickness of the bottom part | 2,0 mm |
| Rated insulation voltage | Ui = 1000 V A.C./D.C. |
| Material | PC-GFS (polycarbonate) |
| Degree of protection | IP 66 / IP 67 / IP 69 IP 67, temporary submersion IP 69, water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m |
| Mounting width | 83 mm |
| Mounting height | 83 mm |
| Max. installation depth | 55 mm |

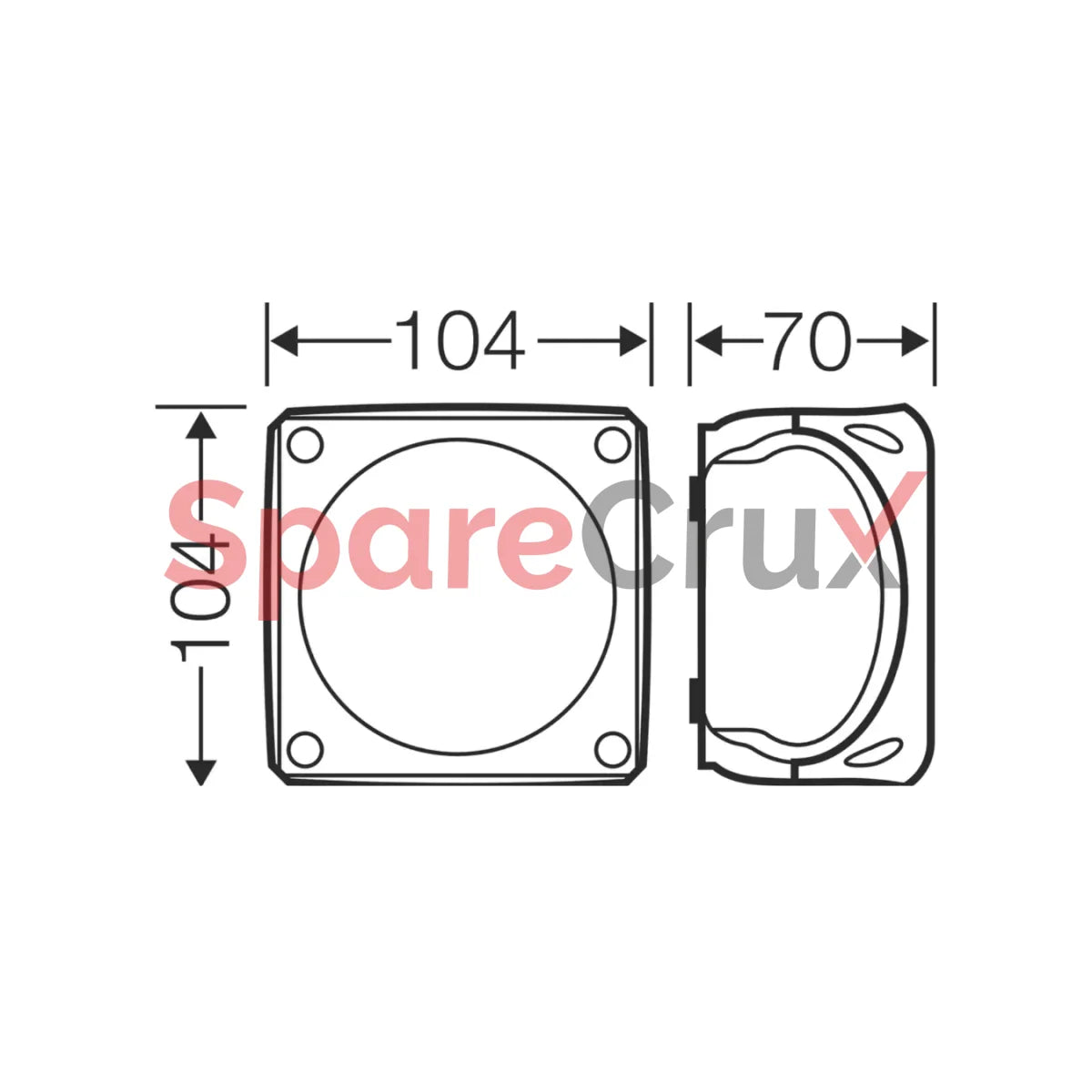

| Width | 104 mm |
| Height | 104 mm |
| Depth | 70 mm |
| weight | 0,138 kg |
| in accordance with | IEC 60670-22 |
| in accordance with | DNV GL - Certificate No: TAE00000EE |
