KF 1010 B | HENSEL | Cable Junction Box IP 66/67/69
₹ 2,336.40
₹ 1,980.00 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

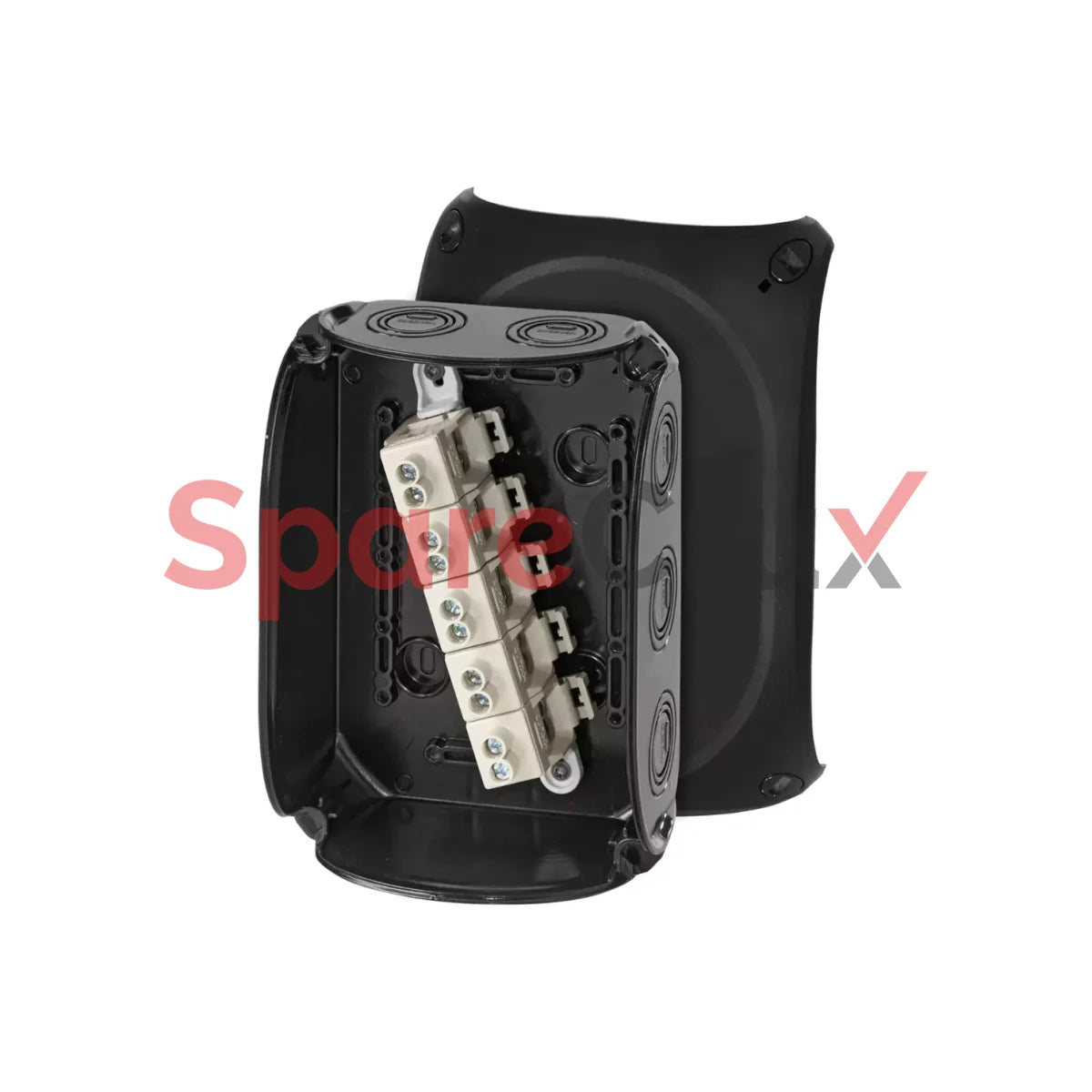

KF 1010 B | HENSEL | Cable Junction Box IP 66/67/69
₹ 1,980.00
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
KF 1010 B
Original Equipment Manufacturer
HENSEL ELECTRIC
Description
Description
KF 1010 B
- 2.5-10 mm², Cu 3~
- Terminal with 2 clamping units per pole
- 5-pole per pole 6 x 2.5 mm² r / f, 4 x 4 mm² r / f, 4 x 6 mm² r / f, 4 x 10 mm² r / f, 2 x 16 mm² s / f
- With two cable entries M 25 from the rear side
- Cable entries via knockouts, order ASS separately (see cable entry systems LES)
- "Weatherproof" resistant to weather influences (UV due to solar radiation, protected against rainwater, temperature resistant, impact resistant, etc.)
- Saltwater-proof
- "Offshore applications"
- Lid fasteners sealable without accessories
- Retaining strap and external brackets for wall fixing included
- Colour: black, RAL 9011
Technical Data
| Rated Insulation Voltage | Ui = 690 V A.C./D.C. |
|---|---|
| Rated Current | 63 A |
| Material | PC-GFS (polycarbonate) |
| Degree of Protection | IP 66 / IP 67 / IP 69 |
| IP 67 | Temporary submersion |
| IP 69 | Water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m |

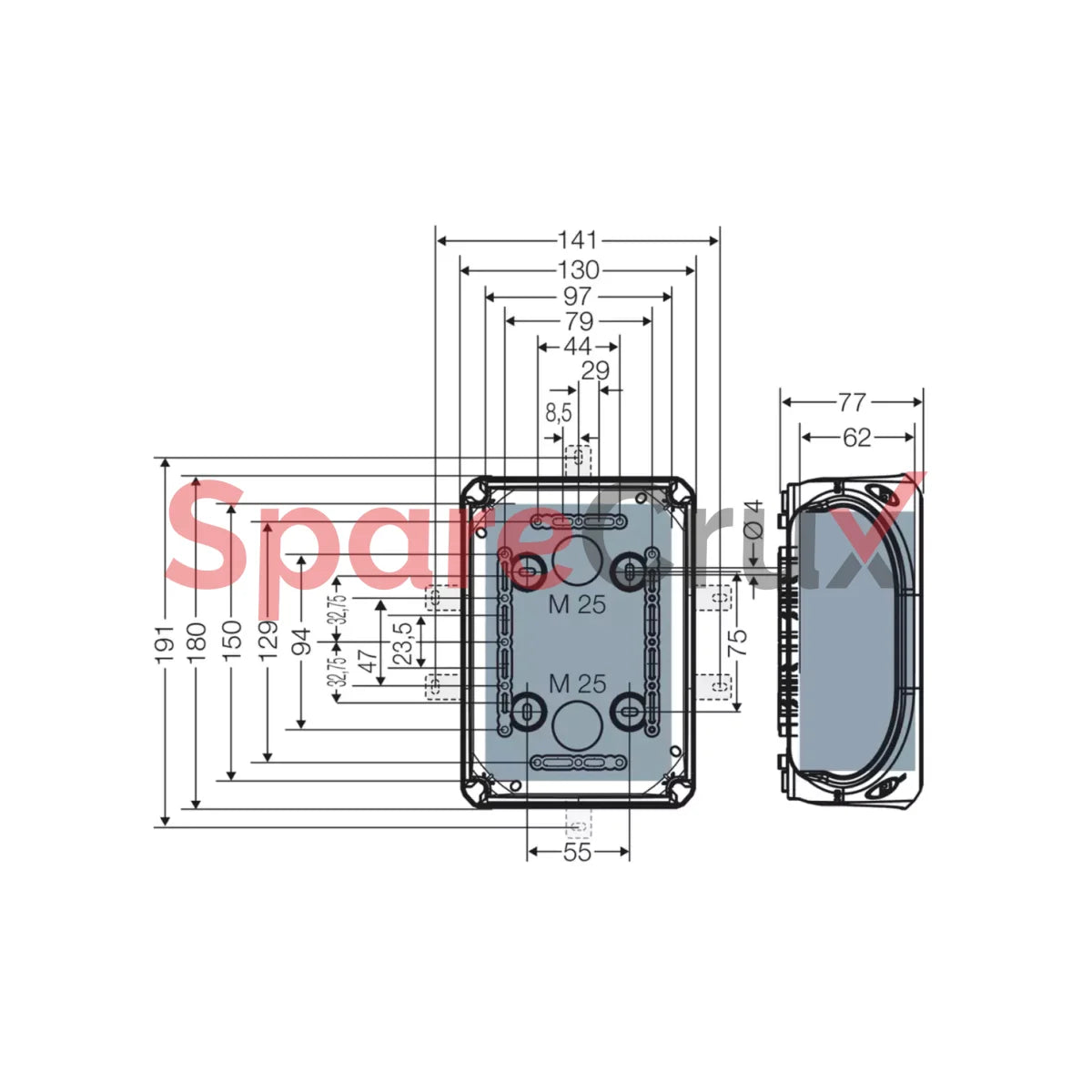

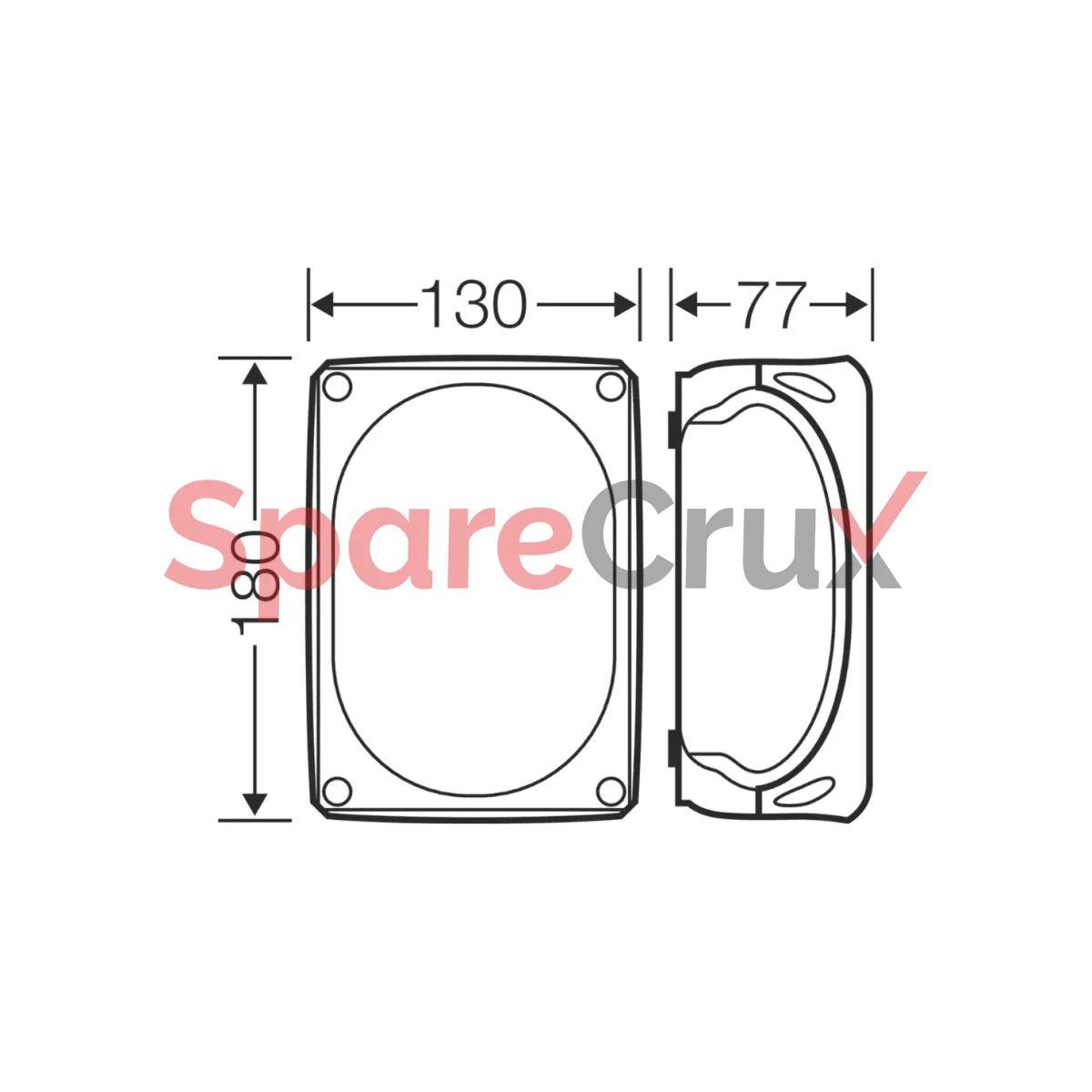

| Width | 180 mm |
| Height | 130 mm |
| Depth | 77 mm |
| Weight | 0.388 kg |
| Tightening Torque for Terminal | 2.0 Nm |
| Compliance | IEC 60670-22, DNV GL - Certificate No: TAE00000EE |
