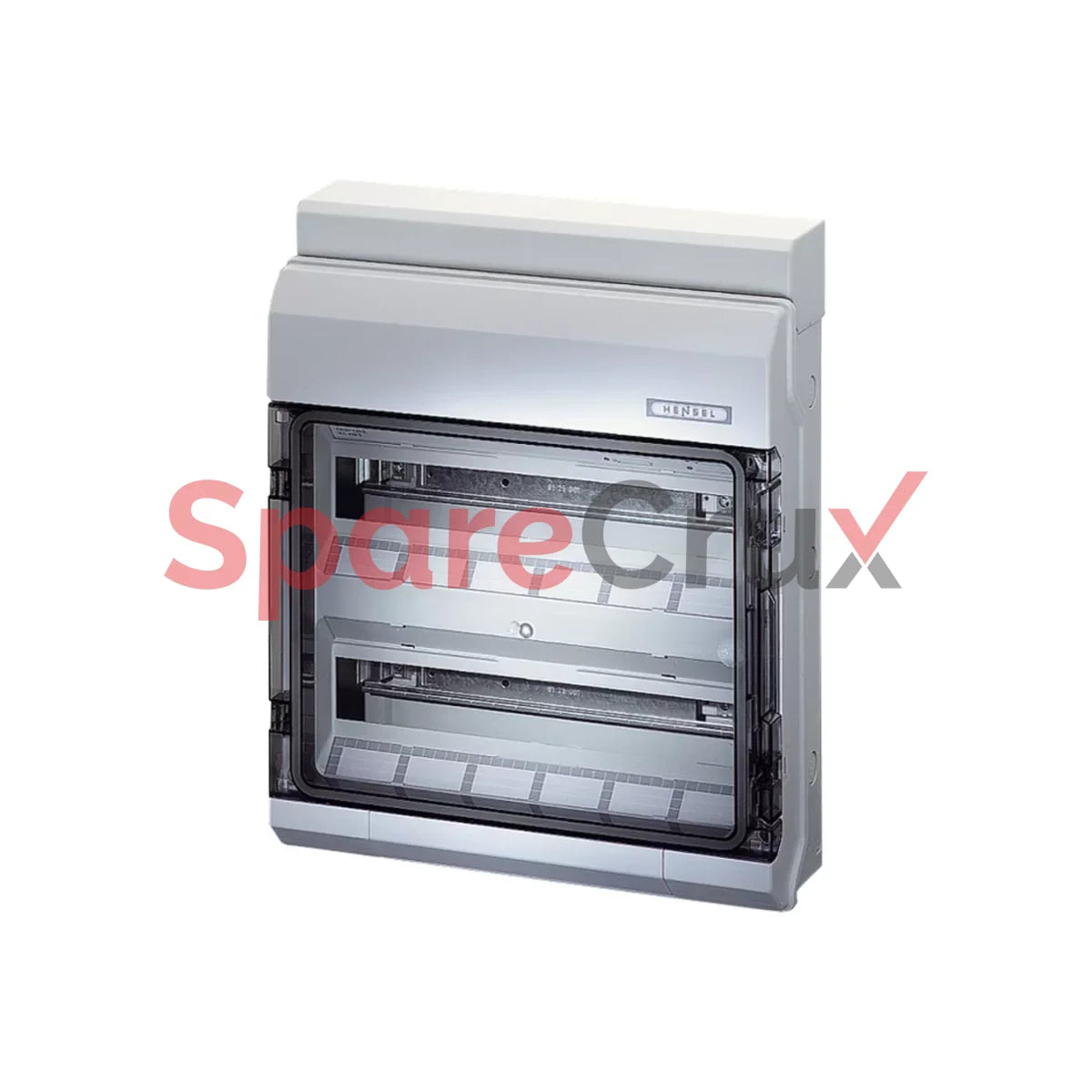

KV 8236 M | HESNEL | Circuit Breaker Boxes IP 65
₹ 9,355.04
₹ 7,928.00 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
KV 8236 M | HESNEL | Circuit Breaker Boxes IP 65
₹ 7,928.00
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
KV 8336 M
Original Equipment Manufacturer
HENSEL ELECTRIC
Description
Description
KV 8236
- 36 modules: 2 x 18 x 18 mm
- Without PE and N terminal
- 2-row
- Order PE/N terminals separately
- For the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
- With transparent door
- For door locking device and sealing device refer to accessories
- With cable entry cover
- With blanking strips for unused DIN rail openings
- Cable entry via integrated elastic membranes
- Degree of protection: IP 65
- Colour: grey, RAL 7035
Technical Data
| rated insulation voltage | Ui = 400 V A.C. |
| power dissipation capability | Pde = 38 watts at 30 K according to EN 60670-24 |
| protection class | II |
| material | PS (Polystyrene) |

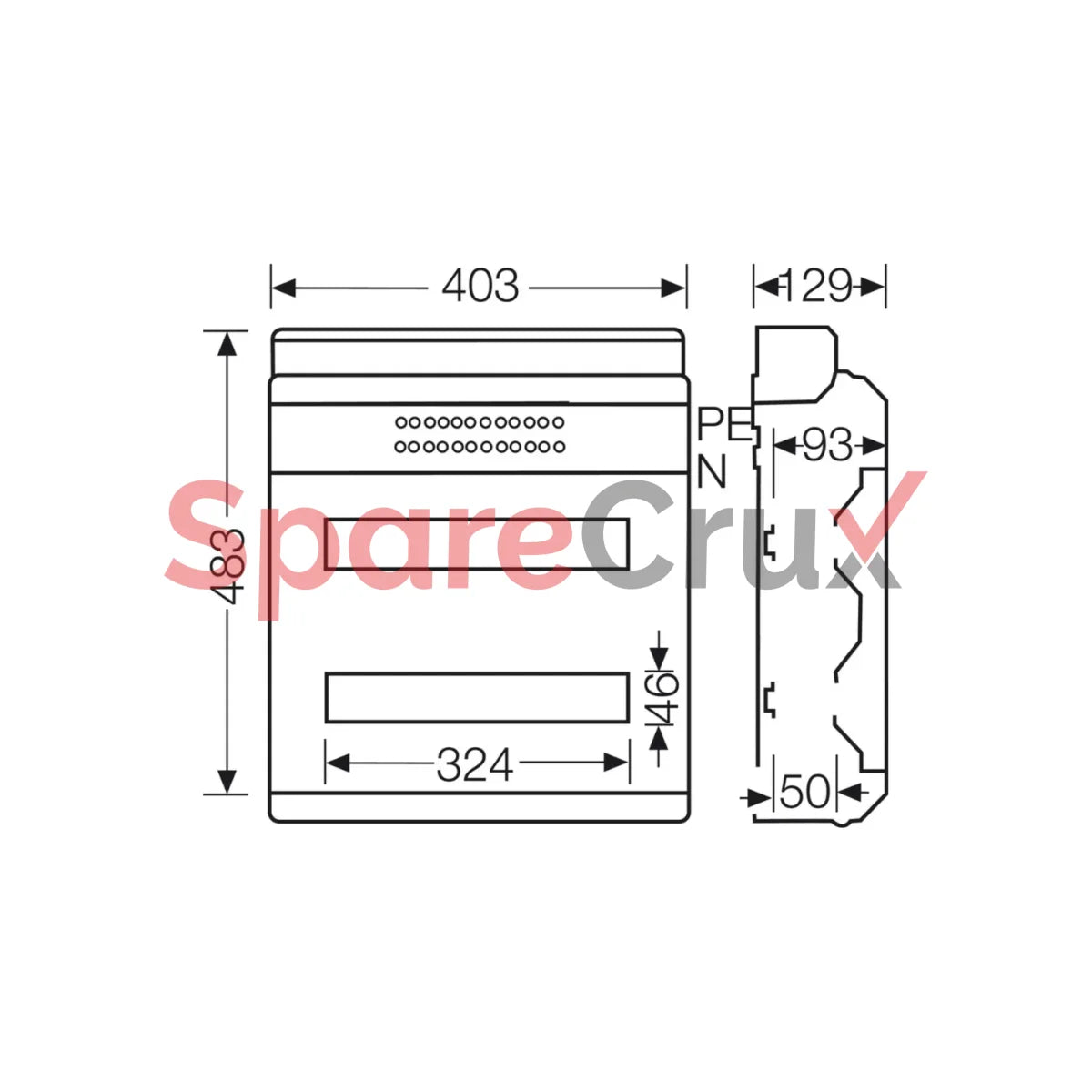

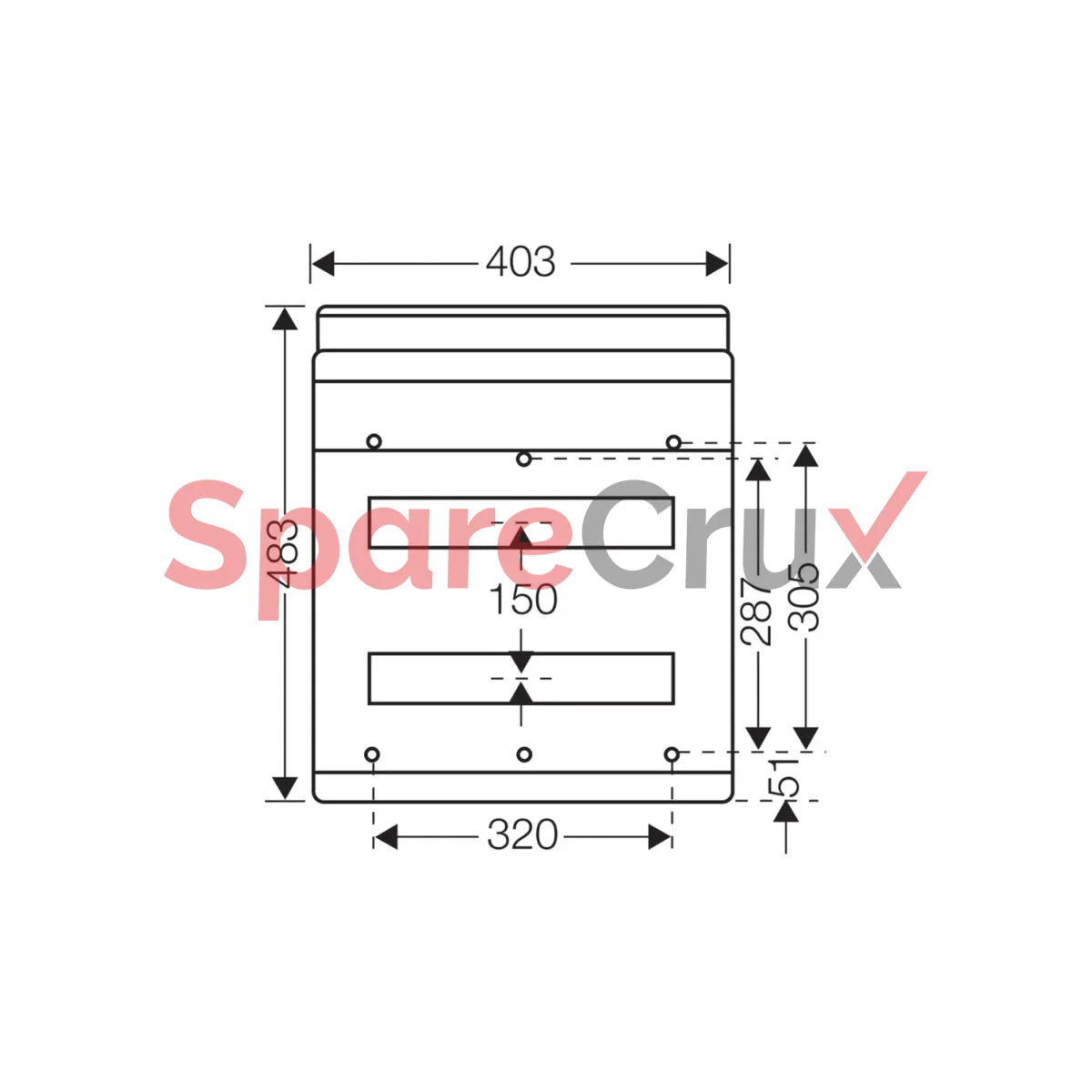

| width | 403 mm |
| height | 483 mm |
| depth | 129 mm |
| weight | 3,245 kg |
