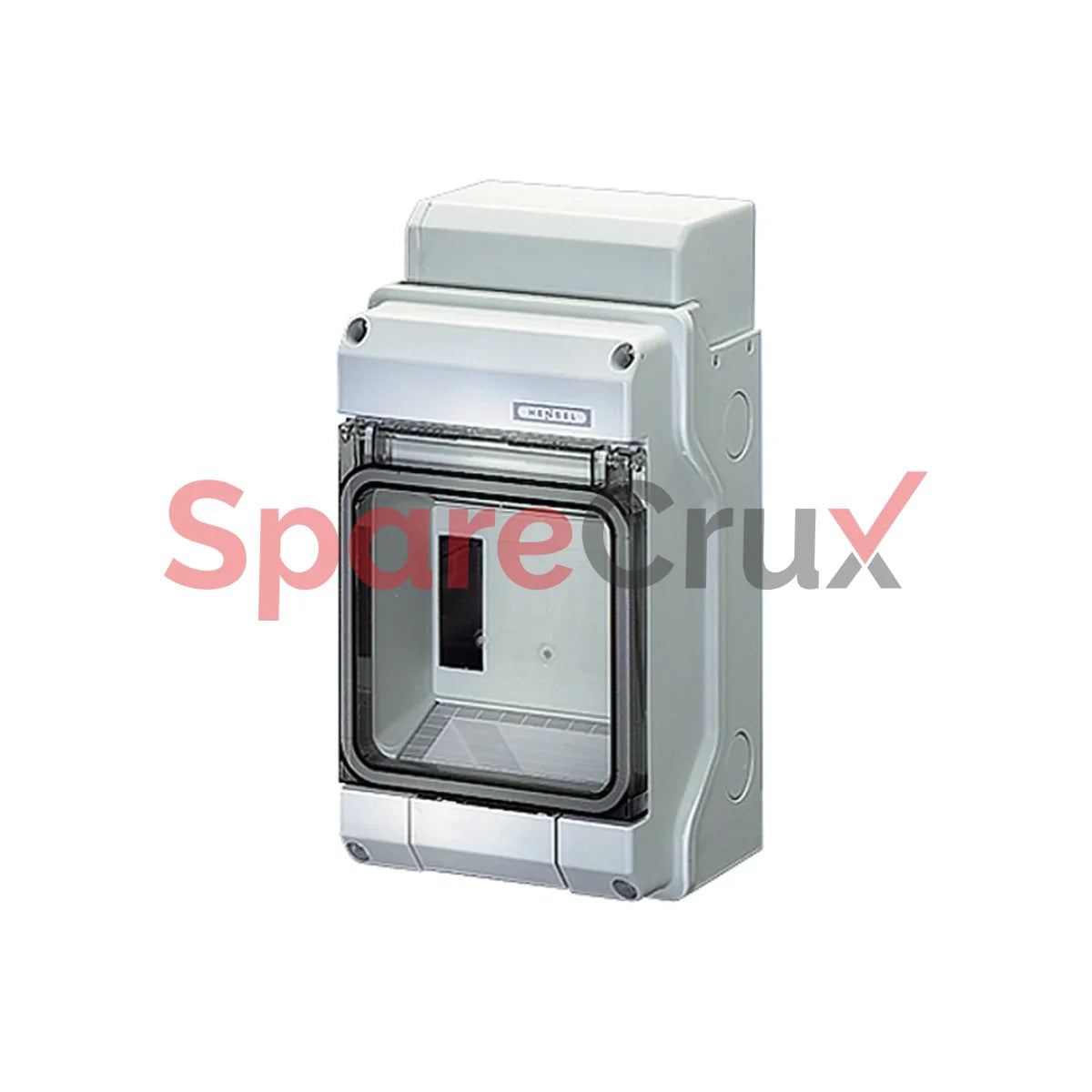

KV PC 8104 | HENSEL | Distribution Box IP 65
₹ 3,379.52
₹ 2,864.00 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
KV PC 8104 | HENSEL | Distribution Box IP 65
₹ 2,864.00
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
KV PC 8104
Original Equipment Manufacturer
HENSEL ELECTRIC
Description
Description
KV PC 8104
- 4.5 modules: 1 x 4.5 x 18 mm
- Without PE and N terminal
- 1-row
- Box walls without knockouts
- Order PE/N terminals separately
- For indoor (normal environment and/or protected outdoor) and outdoor installation (harsh environment and/or outdoor)
- For the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
- With transparent lid, sealable
- Locking device for hinged lid and sealing facility see accessories
- With cable entry cover
- Protective cover can be cut out
- Degree of protection: IP 65
- Colour: grey, RAL 7035
Technical Data
| rated insulation voltage | Ui = 400 V A.C. Ui = 1000 V D.C. |
| power dissipation capability | Pde = 12 watts at 30 K according to EN 60670-24 |
| protection class | II |
| material | PC (Polycarbonate) |

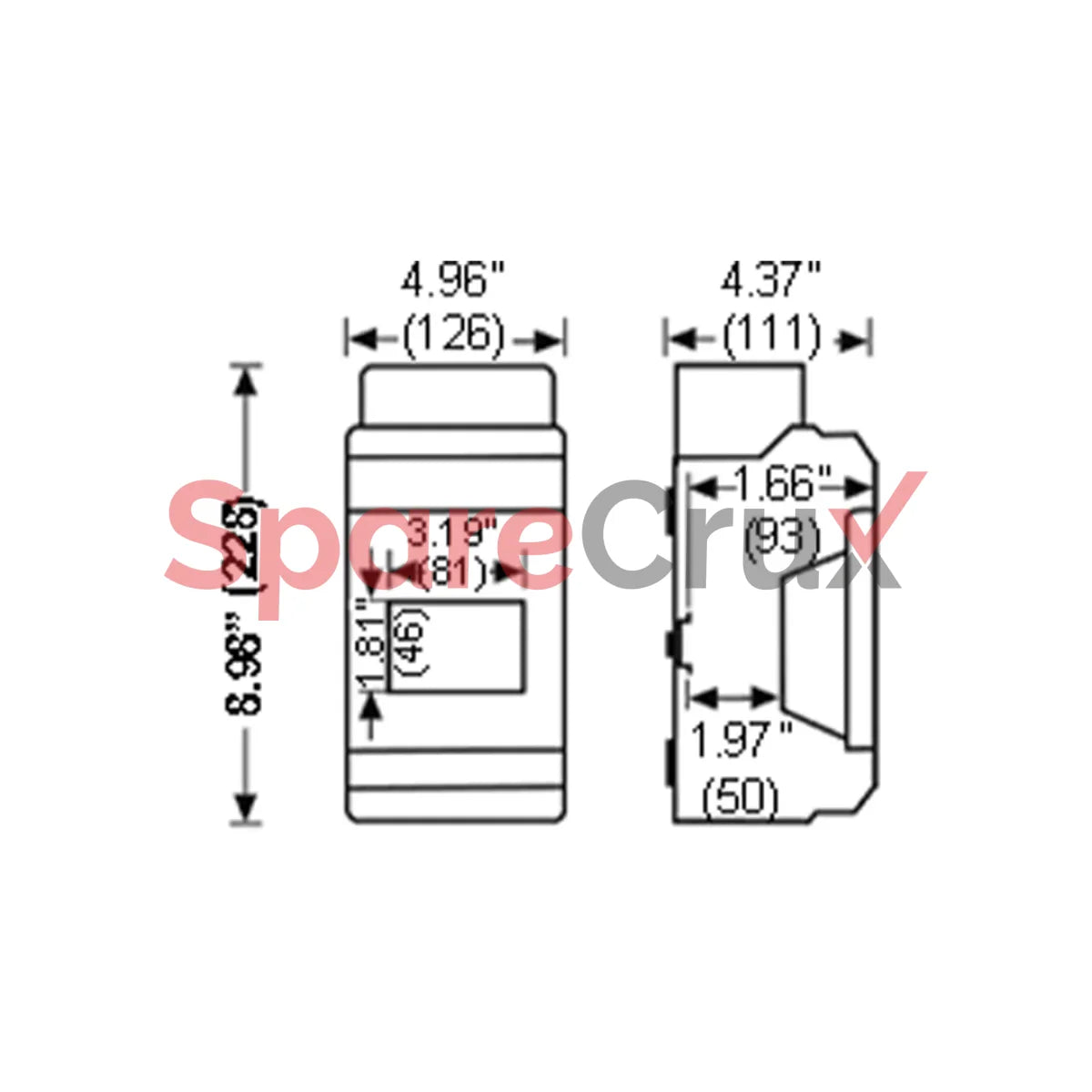

| width | 126 mm |
| height | 228 mm |
| depth | 111 mm |
| weight | 0,627 kg |
