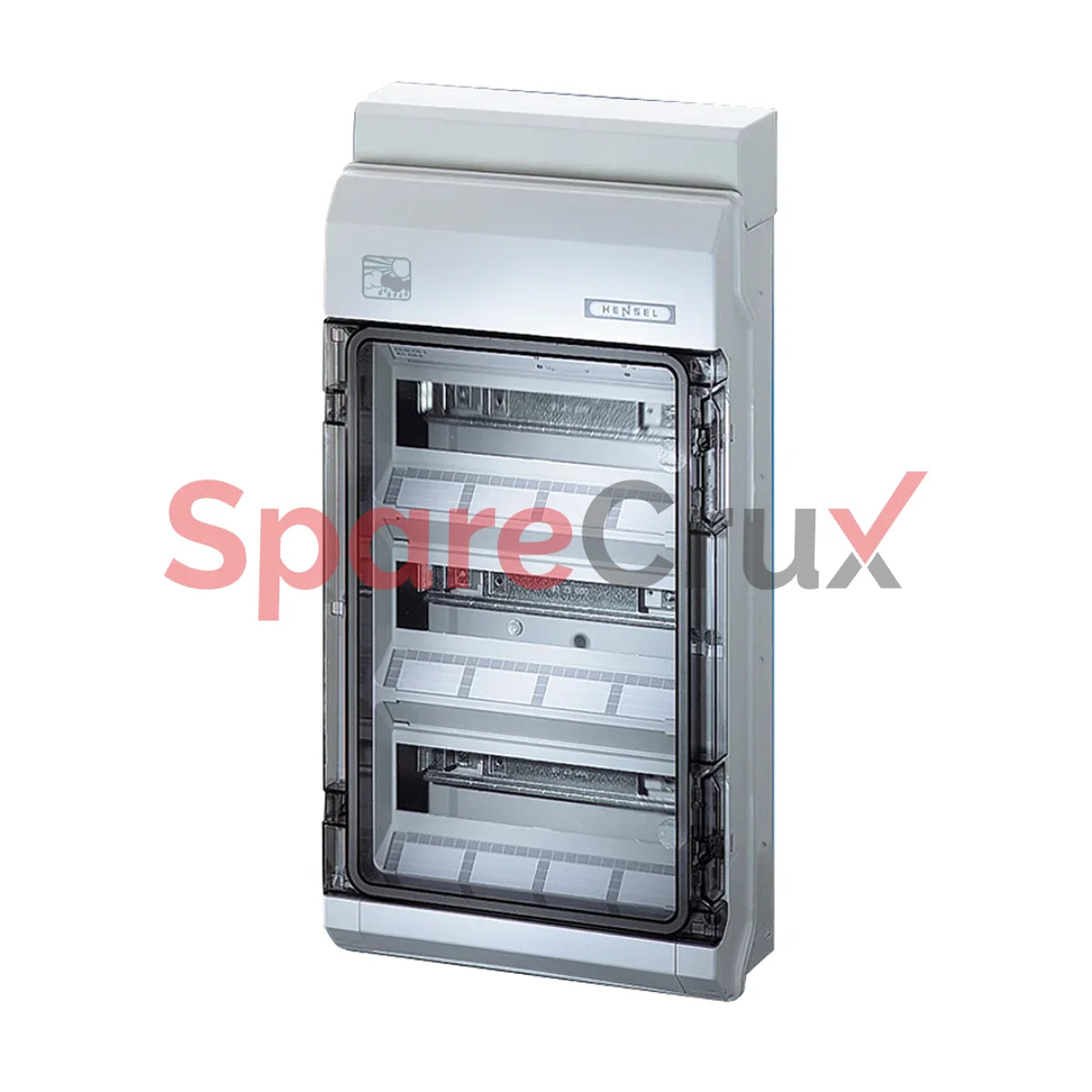

KV PC 9336 | HENSEL | Distribution Box IP 65
₹ 15,793.12
₹ 13,384.00 (Excl. Tax)
● Available for backorder, with an estimated lead time of 8 to 12 weeks.
Couldn't load pickup availability
Warranty
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
KV PC 9336 | HENSEL | Distribution Box IP 65
₹ 13,384.00
Unit price
/
Unavailable
Manufacturer Part Number (MPN)
KV PC 9336
Original Equipment Manufacturer
HENSEL ELECTRIC
Description
Description
KV PC 9336
- 36 modules: 3 x 12 x 18 mm
- 3-row
- Cable entry via integrated elastic membranes
- Per PE/N number x cross section 6 x 25 mm², 24 x 4 mm² Cu, FIXCONNECT® terminal technology, for terminal technology refer to technical data
- N separable, up to 4 different potentials
- For indoor (normal environment and/or protected outdoor) and outdoor installation (harsh environment and/or outdoor)
- For the installation of DIN rail equipment up to 63 A, top hat profile 35 mm
- With transparent door
- For door locking device and sealing device refer to accessories
- With cable entry cover
- With blanking strips for unused DIN rail openings
- Lateral enclosure connections can be managed by drilling
- Degree of protection: IP 65
- Colour: grey, RAL 7035
Technical Data
| rated insulation voltage | Ui = 400 V A.C. |
| power dissipation capability | Pde = 35 watts at 30 K according to EN 60670-24 |
| permissible power dissipation | Pzul = 28 watts at 30 K according to DIN 43871 |
| protection class | II |
| material | PC (Polycarbonate) |

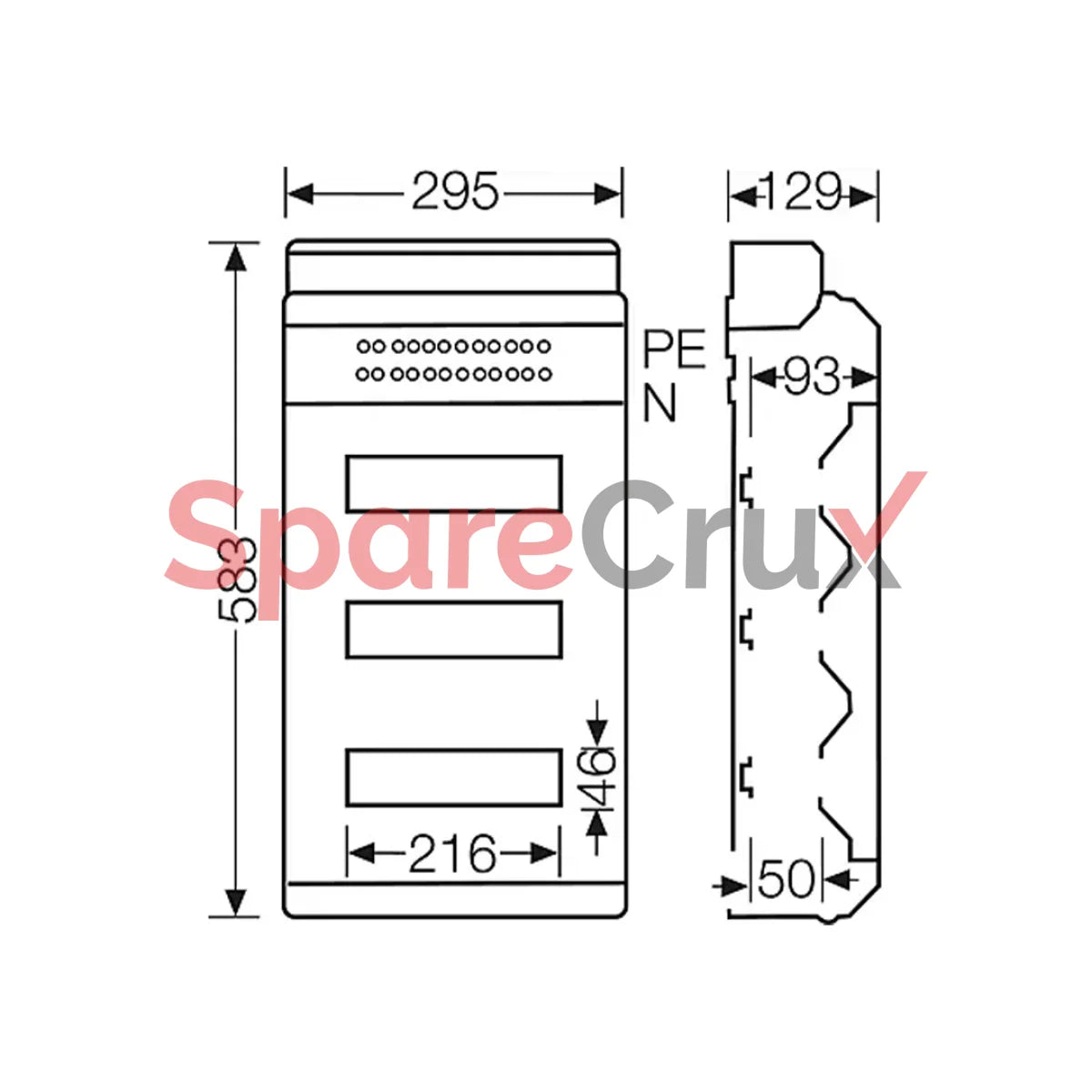

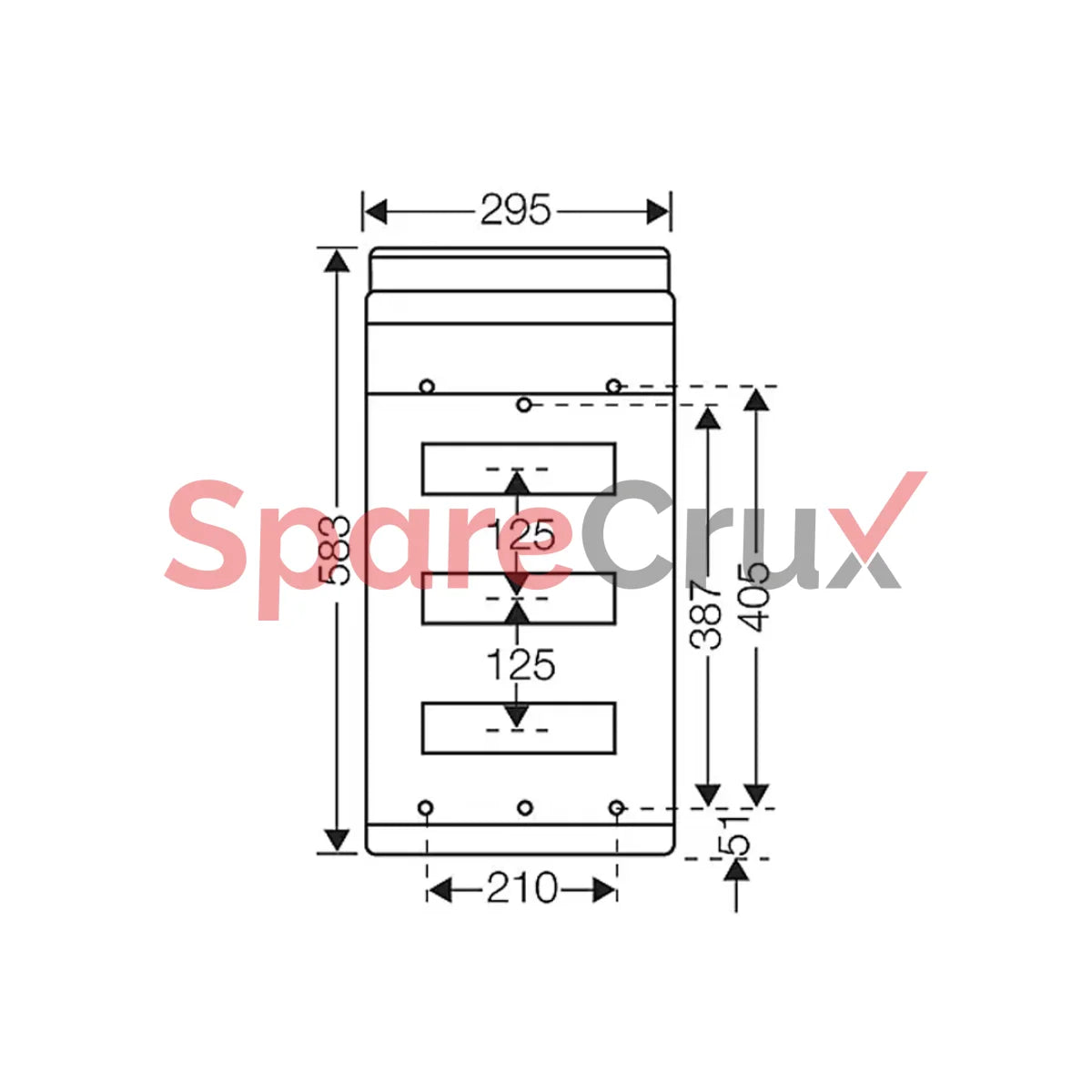

| width | 295 mm |
| height | 583 mm |
| depth | 129 mm |
| weight | 3,67 kg |
